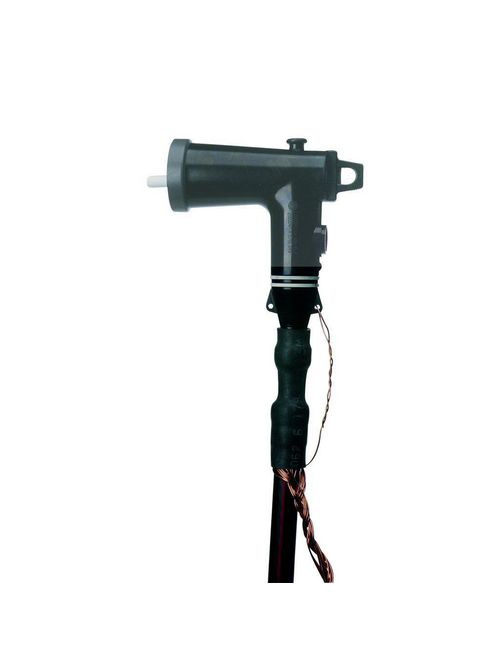

3M 8454 Cable Accessory Sealing Kit
Product image thumbnail 0
Product image thumbnail 1
$37.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 8454
Irby Part # 42431

Features

  • Suitable for use with commonly used power cable jacketing and semi-conductive materials
  • Specially designed to seal between the cable jacket end and a cable accessory.
  • RoHS 2011/65/EU Compliant

Specifications

  • Cable Accessory Products: Sealing and Grounding Kits
  • Cable Shielding: Jacketed Concentric Neutral (JCN)
  • Cable Size by Voltage: (15 kV) 750-1500 kcmil (380-725 mm²), (25 kV) 600-1250 kcmil (325-625 mm²), (35 kV) 350-1000 kcmil (180-500 mm²)
  • Cold Shrink Sealing Tube: 1
  • Conductor Sizes: 500 kcmil - 750 kcmil - 800 Kcmil - 450 kcmil - 1000 kcmil - 1250 kcmil - 600 kcmil - 700 kcmil - 900 kcmil - 350 kcmil - 1500 kcmil - 400 kcmil
  • Expanded Tube Diameter: 3.87 in
  • Expanded Tube Diameter (Metric): 98 mm
  • Expanded Tube Length: 7.50 in
  • Expanded Tube Length (Metric): 19 mm
  • Material: EPDM-rubber
  • Maximum Cable Diameter (Imperial): 3.5 in
  • Maximum Cable Diameter (Metric): 88.9 mm
  • Maximum Installed Diameter: 3.5 in
  • Maximum Installed Diameter (Metric): 89 mm
  • Minimum Cable Diameter (Metric): 41 mm
  • Minimum Cable Diameter (Imperial): 1.6 in
  • Minimum Seal Diameter: 1.6 in
  • Minimum Seal Diameter (Metric): 41 mm
  • Number of Mastic Sealing Strips: 6 strips
  • Relaxed Tube Length: 9 in
  • Relaxed Tube Length (Metric): 22.5 cm
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 35 kV - 25/28 kV - 15 kV

Overview

UPC 05400749938
Item Long Description 3M 8450 Cold Shrink Cable Accessory Sealing Kit is designed to seal between the jacket end and the end of an installed cable accessory. The kit includes a cold shrink sealing tube and mastic sealing strips and is rated for 15 to 35 kV cables.
GTiN 00054007499381
Size 1000 kcmil; 1250 kcmil; 1500 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Color Black
Type Cable Accessory Sealing Kit
Applications Sealing Kit
Family Brand Name 3M
Voltage 892.857/15,000/35,000 Volt
