3M 951X-BOTTLE 50/Bottle Self-Strip T-Tap
Product image thumbnail 0
Product image thumbnail 1
$0.30/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 951X-BOTTLE
Irby Part # 256145

Features

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting

Specifications

  • Barrel Style: Insulated Self-Stripping
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Connection Type: T-tap
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector / Connector Tool: 3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
  • Connector Style: Insulation Displacement
  • CSA File Number: LR15503, LR32411
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: Yes
  • Grease Filling Against Corrosion: No
  • Insulation Color: Red
  • Insulation Material: Nylon
  • Material: Insulator: FR Nylon, Element: Tin plated brass
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Wire Gauge: 22 AWG
  • Product Color: Red
  • Product Type: Connector
  • Recommended Crimping Tool: E-9BM Mechanics (slip joint) Pliers
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Type: T-tap
  • UL File Number: E70512, UL Listed for AWG Only

Overview

UPC 05400712312

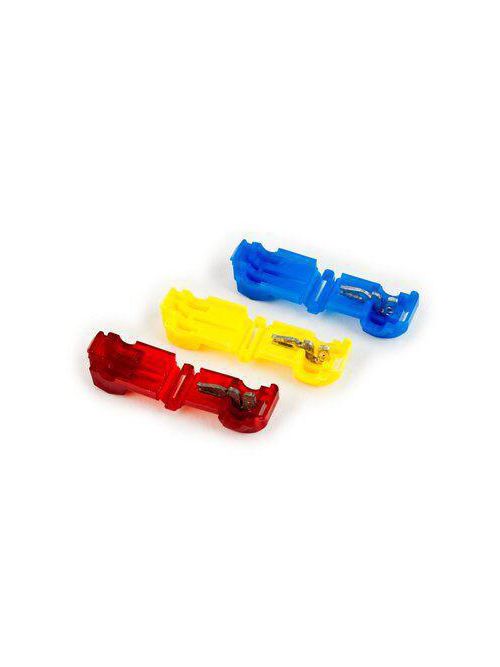

Item Long Description 3M Scotchlok Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.
GTiN 00054007123125
Size 22 - 18 AWG
Family Brand Name 3M
TC Connection T-Tap
Sub Brand Scotchlok
Barrel Type Insulated Self-Stripping
Material Element: Tin Plated Brass,Insulator: FR Nylon
Terminal Type T-tap
Conductor Size 18 AWG
Country of Origin USA
Connection Type T-tap
Insulation Material Nylon
Flame Retardant Yes
Max Operating Temperature 221 degrees F
Color Red
