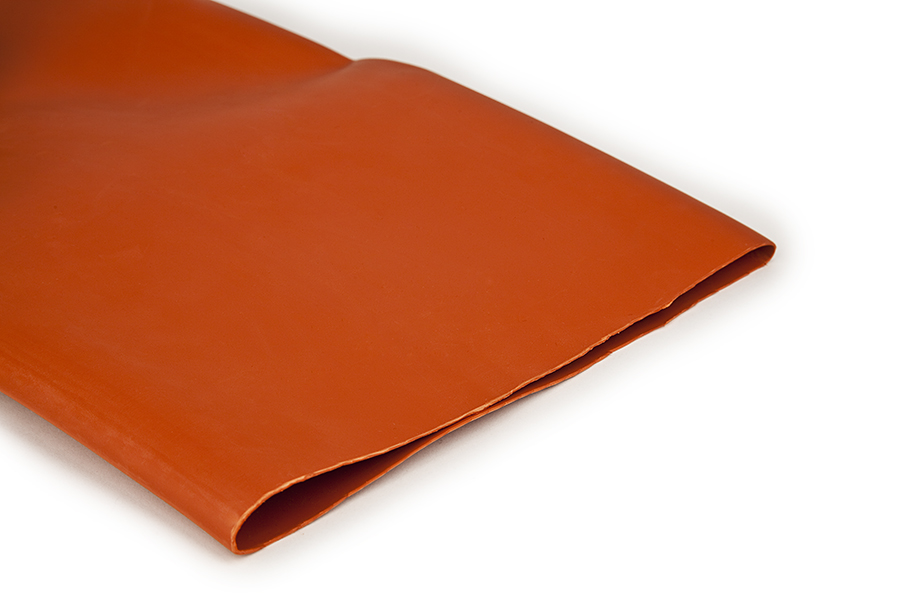

3M BBI6ARD20' BBI-6A 20 FT/RL 97059
$39.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # BBI6ARD20'
Irby Part # 561413

Features

  • Suitable for copper or aluminum bus bars, metal-enclosed bus bars, metal-clad switchgear and substation switchgear
  • Made of red cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant
  • ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant

Specifications

  • Color Family: Multi-Color
  • Expanded Wall Thickness: 0.046 in
  • Flame Retardant: Yes
  • Halogen Free: No
  • Heat Shrink Type: Heavy-Duty Heat Shrink Tubing
  • Inner Diameter After Shrink (Imperial): 7.571 in
  • Inner Diameter After Shrink (Metric): 192.3 mm
  • Inner Diameter Before Shrink (Imperial): 12.858 in
  • Inner Diameter Before Shrink (Metric): 326.6 mm
  • Material: Polyolefin
  • Maximum Operating Temperature (Celsius): 110 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 230 Degree Fahrenheit
  • Operating Temperature (Celsius): -55 °C to 110 °C
  • Operating Temperature Range (Celsius): -55 °C to 110 °C
  • Operating Temperature Range (Fahrenheit): -67 °F to 230 °F
  • Outside Diameter (Bar Circumference): 7.57 - 12.86 inch
  • Overall Length (Imperial): 20 ft
  • Overall Length (Metric): 6.1 m
  • Product Color: Orange - Red
  • Product Key: BB14 NEW BUS BAR TUBING 6000 FPE
  • Product Technology: Heat Shrink
  • Product Type: Bus Bar Tubing
  • Recovered Wall Thickness: 0.117 in
  • Rectangular Size: (3-1/2 x 1/2) to (6 x 3/4) Inch (for 5 kV, 8 kV, 15 kV, 25 kV)
  • Relaxed Tube Length (Metric): 6.1 m
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Round Size (Diameter): See Sizing Chart on Data Sheet
  • Shape: Square - Round - Rectangular
  • Shrink Ratio: 1.5 : 1
  • Splice Type: Heat Shrink
  • Square Size: (2-1/2 x 2-1/2) to (3 x 3) Inch (for 5 kV, 8 kV, 15 kV) - 7.57 - 12.86 inch OD (for 25 kV)
  • UL Approval: No
  • Voltage: 15 kV - 25 kV - 5 kV - 8 kV
  • With Inner Glue: No

Overview

UPC 05113535732
GTiN 00051135357323
Family Brand Name 3M
Length 20 ft
Color Red
Type Bus Bar
Thickness 0.046
Shrink Ratio Not Applicable
Outside Diameter 5.9 in
Dielectric Strength 550 V/mil
Inside Diameter 2.33
Item Long Description 3M Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.
Material Polyolefin
Overall Length 20 ft
