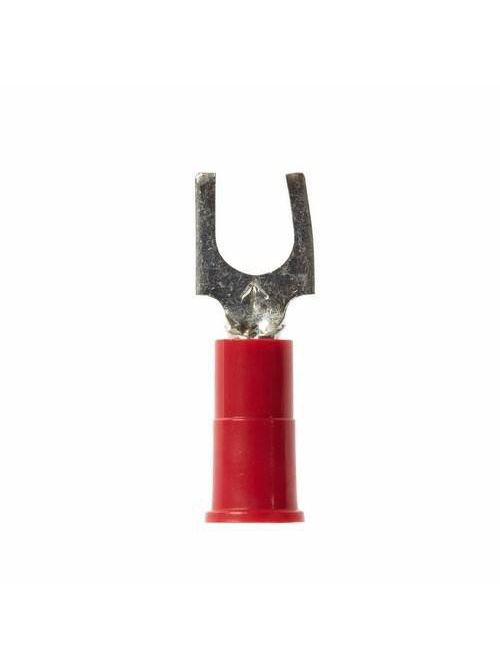

3M BFV18-10Q Highland 25/Bag Vinyl Block Fork
Product image thumbnail 0
Product image thumbnail 1
$6.10/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # BFV18-10Q
Irby Part # 3349230

Features

  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Specifications

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 7.62 mm
  • Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
  • Terminal Type: Fork

Overview

UPC 05112859993
Item Long Description 3M Highland Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128599938
Color Red
Type Butted
Material Plastic
Wire Size 22-18 AWG
Family Brand Name Highland
Terminal Size 10
TC Connection Fork
Sub Brand Highland
Length 0.85 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Block
Terminal Type Fork
Conductor Size 22-18 AWG
Insulation Material Vinyl
Max Operating Temperature 105 C
Barrel Length 0.25 in
Overall Length 0.85 in
