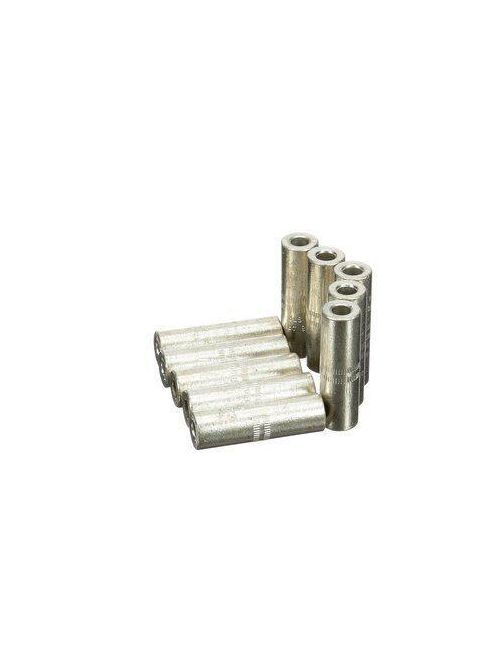

3M CI-2/0 Connector for Use with Splice Kits
Product image thumbnail 0
Product image thumbnail 1
$15.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CI-2/0
Irby Part # 3064601

Features

  • Standard barrel ensures a secure fit and offers reliable performance
  • Built-in solid center oil stop allows for correct positioning
  • For use with the 3M Cable Splice Kits QS-I, QS-II and QS-III Series
  • Made of aluminum for good conductivity and tin plating for corrosion resistance
  • Rated up to 35 kV
  • Meets ANSI C119.4
  • RoHS 2011/65/EU Compliant

Specifications

  • Barrel Style: Standard Barrel
  • Body Material: Aluminum
  • Compatible With: Molded Rubber Splices 15 kV and 25 kV - 5451R - 5420, 5450 & 5451A
  • Connector Base Metal: Aluminum
  • Connector Type: Compression
  • Electrical Connector Type: Compression Connectors
  • For Use With: Aluminum or Copper Conductors
  • Insulation Material: Non Pertinent
  • Maximum Conductor Size: 2/0 AWG
  • Maximum Operating Voltage: 35 Kilovolt
  • Maximum Solid Conductor Size: N/A
  • Maximum Stranded Conductor Size: 2/0 AWG
  • Minimum Conductor Size: 2/0 AWG
  • Outer Diameter (Imperial): 0.91 in
  • Outside Diameter (Metric): 23.1 mm
  • Overall Length (Imperial): 3 in
  • Overall Length (Metric): 76.2 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

Overview

UPC 05400711875
Item Long Description The 3M Aluminum Connectors CI Series are for splicing applications on aluminum or copper cable conductors. The CI Series aluminum connectors are specially designed for use with 3M QS, QS II and QS III Pre molded Power Cable Splice Bodies. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. These connectors meet the requirements of ANSI C119.4.
GTiN 00054007118756
Family Brand Name 3M
Length 3 in
Barrel Type Standard Barrel
Outside Diameter 0.91 in
Max Voltage 35 kV
Overall Length 3 in
