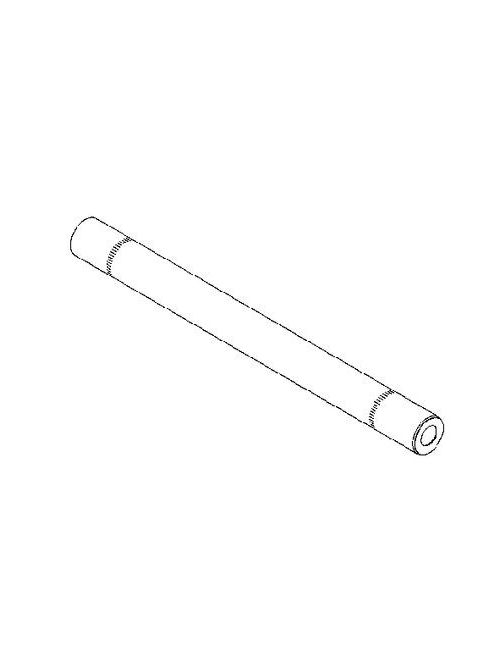

3M CIR-1/0A CIR-1/0A CABLE REPAIR C

Features

• Standard barrel ensures a secure fit and offers reliable performance
• Virtually eliminates the need to splice in a new section of cable
• Specially designed for use with the 5411R and 5412R splice kits
• Tin plated aluminum for good conductivity and corrosion-resistantance
• Meets the requirements of ANSI C119.4

Specifications

• Barrel Style: Standard Barrel
• Cable Shielding: Non Pertinent
• Compatible With: 5451R Splice Body - 5451R
• Connector Base Metal: Aluminum
• Electrical Connector Type: Compression Connectors
• For Use With: Aluminum or Copper Conductors
• Insulation Outer Diameter (Imperial): 0.91 in
• Insulation Outer Diameter (Metric): 23.114 mm
• Maximum Operating Voltage: 35 Kilovolt
• Maximum Solid Conductor Size: N/A
• Maximum Stranded Conductor Size: 1/0 AWG
• Operating Voltage: 25 kV - 28 kV
• Outer Diameter (Imperial): 0.91 in
• Outside Diameter (Metric): 23.1 mm
• Overall Length (Imperial): 9 in
• Product Type: Repair Splice Connector
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
