3M Electrical CIR-2/0 Connector for Splice Kit

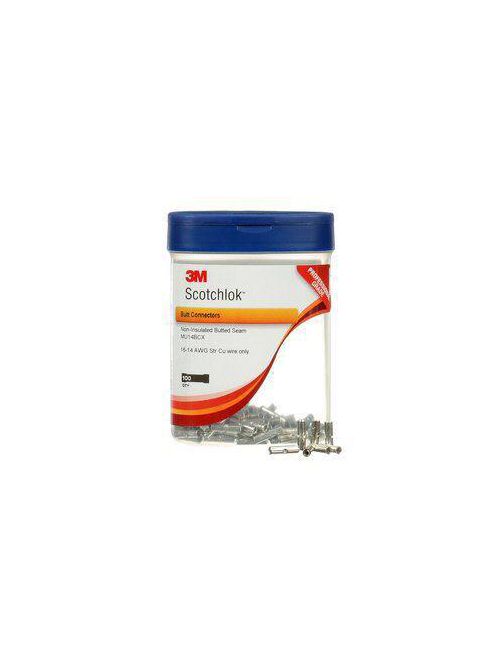

Product image thumbnail 0
Product image thumbnail 1
$31.20/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CIR-2/0
Irby Part # 3326046

Features

  • Standard barrel ensures a secure fit and offers reliable performance
  • Virtually eliminates the need to splice in a new section of cable
  • Specially designed for use with the 5411R and 5412R splice kits
  • Tin plated aluminum for good conductivity and corrosion-resistantance
  • Meets the requirements of ANSI C119.4

Specifications

  • Barrel Style: Standard Barrel
  • Cable Shielding: Non Pertinent
  • Compatible With: 5411R & 5412R - 5412R Splice Body
  • Connector Base Metal: Aluminum
  • Electrical Connector Type: Compression Connectors
  • For Use With: Aluminum or Copper Conductors
  • Insulation Outer Diameter (Imperial): 0.91 in
  • Insulation Outer Diameter (Metric): 23.114 mm
  • Maximum Operating Voltage: 35 Kilovolt
  • Maximum Solid Conductor Size: N/A
  • Maximum Stranded Conductor Size: 2/0 AWG (220 mil insulation only)
  • Operating Voltage: 15 kV
  • Outer Diameter (Imperial): 0.91 in
  • Outside Diameter (Metric): 23.1 mm
  • Overall Length (Imperial): 9 in
  • Overall Length (Metric): 228.6 mm
  • Product Type: Repair Splice Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Voltage: 25/28 kV

Overview

UPC 05400741964
Item Long Description 3M CIR Repair Splice Connector is for use on aluminum or copper conductors. The connector has a standard barrel that ensures a secure fit. Its aluminum construction offers high conductivity and an electro tin plated finish resists corrosion.
GTiN 00054007419648
Family Brand Name 3M
Length 9 in
Voltage 15 kV
Barrel Type Standard Barrel
Outside Diameter 0.91 in
Max Voltage 35 kV
Overall Length 9 in
