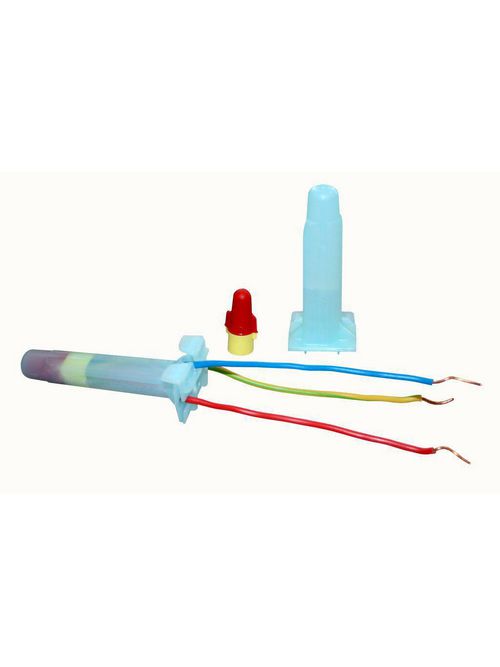

3M DBR/Y-6 BULK 100/Box Red/Yellow Direct Bury Splice Kit
Product image thumbnail 0
Product image thumbnail 1
$2.10/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # DBR/Y-6BULK
Irby Part # 3343670

Features

  • UL Listed for 600 volts in direct bury applications
  • Twist-on type for quick connection
  • Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
  • Delivers uniform holding power
  • Withstands temperatures up to 221 °F (105 °C)

Specifications

  • Closure Length (Imperial): en-CA: 3.66 in - en-US: 3.66 in - fr-CA: 3.66 po
  • Closure Length (Metric): 93 mm
  • Color Family: Multi-Color
  • Conductor Size: 18 - 10 AWG
  • Conductor Sizes: 18 - 10 AWG
  • Conductor Size Unit: AWG
  • Connection Type: Wire
  • Connector Style: Direct Bury
  • Encapsulation Method: Moisture sealed spring connector
  • Flame Retardant: UL-94 V-2
  • Grease Filling Against Corrosion: Yes
  • Insulation Material: Tube is UV resistant Polypropylene
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 18 AWG
  • Operating Temperature (Celsius): -40 °C to 105 °C
  • Operating Temperature (Fahrenheit): -40 °F to 221 °F
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Package Quantity: 100
  • Product Color: Yellow - Red
  • Product Type: Connector
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Wire Connector: R/Y+
  • Wire Connector Type: Direct Bury Splice Kit
  • Wire Gauge Range: 10 to 18 American Wire Gauge (AWG)

Overview

UPC 05112858574
Item Long Description 3M Direct Bury Splice Kits combine the quick, reliable connection of a 3M Performance Plus Wire Connector with the moisture resistance of a high impact, UV resistant tube prefilled with moisture resistant grease. It is UL Listed for 600 volts in direct bury applications.
GTiN 00051128585740
Size 18 - 10 AWG
Applications Direct Bury
Temperature Rating -40 to 221 F
Family Brand Name 3M
TC Connection Wire
Sub Brand Scotchlok
Voltage 600 Volt
Product Type Connector
Conductor Size 10 AWG
Connection Type Wire
Insulation Material UV Resistant Polypropylene
Max Operating Temperature 221 degrees F
Color Multi Color,Red ,Yellow
