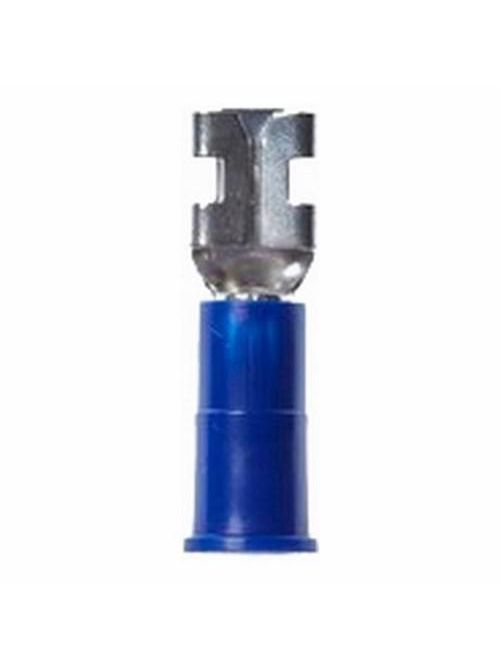

3M FDV14-187Q Vinyl Insulated 25/Bag Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
$5.90/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FDV14-187Q
Irby Part # 3406605

Overview

Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Specifications

  • Insulation Material: Vinyl
  • Barrel Length: 0.25 Inch
  • Thickness: 0.02 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Terminal Style: Standard
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Pad Width: 0.187 Inch
  • Conductor Sizes: 16 - 14 AWG
  • Mates with Male Tab Width (W'): 0.187 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Packaging: 25 per bag
  • Trademark: Highland
  • Fastener Orientation: Female
  • Length: 0.78 Inch
  • Terminal Type: Disconnect
  • Barrel Style: Butted
  • Brand: Highland
  • UL File Number: E70512
  • Agency Approvals: UL and CSA
  • CSA File Number: LR22190

Documents

Overview

UPC 05112860005
Item Long Description This female disconnect accepts a wire range of 16-14 AWG, a stud size of .187 and has a case quantity of 10 bags.
GTiN 00051128600054
Color Blue
Type Disconnect
Material PVC
Wire Size 16-14 AWG
Family Brand Name 3M
TC Connection Disconnect
Sub Brand Highland
Length 0.78 in
Thickness 0.02 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
