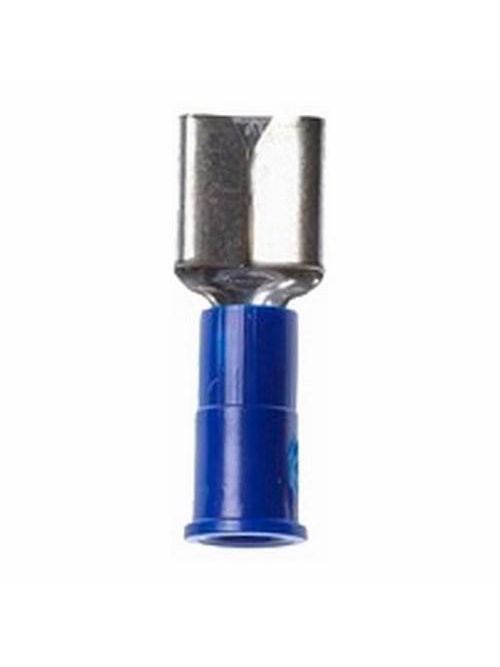

3M FDV14-250Q 25/Bag Vinyl Insulated Female Disconnect

$5.90/ea

In Stock | 58 available at 7 locations

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	3M
Mfg Catalog #	FDV14-250Q
Irby Part #	3348477

Overview

Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Specifications

Maximum Insulation Outer Diameter: 0.145 Inch
Packaging: 25 per bag
RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
RoHS 2011/65/EU Compliant: Yes
Thickness: 0.032 Inch
Terminal Type: Disconnect
Pad Width: 0.25 Inch
Barrel Length: 0.25 Inch
Brand: Highland
Fastener Orientation: Female
Length: 0.87 Inch
Agency Approvals: UL and CSA
Barrel Style: Butted
UL File Number: E70512
Trademark: Highland
Terminal Style: Standard
Insulation Material: Vinyl
Mates with Male Tab Width (W'): 0.25 Inch
CSA File Number: LR22190
Conductor Sizes: 16 - 14 AWG

Documents

Overview

UPC	05112860006
Item Long Description	This female disconnect accepts a wire range of 16-14 AWG, a .250 stud size and has a case quantity of 10 bags.
GTiN	00051128600061
Color	Blue
Type	Disconnect
Material	PVC
Wire Size	16-14 AWG
Family Brand Name	3M
TC Connection	Disconnect
Sub Brand	Highland
Length	0.87 in
Thickness	0.032 in
Barrel Type	Butted
Terminal Style	Standard
Terminal Type	Disconnect
Conductor Size	16 To 14 AWG
Insulation Material	Vinyl
Barrel Length	0.25 in
