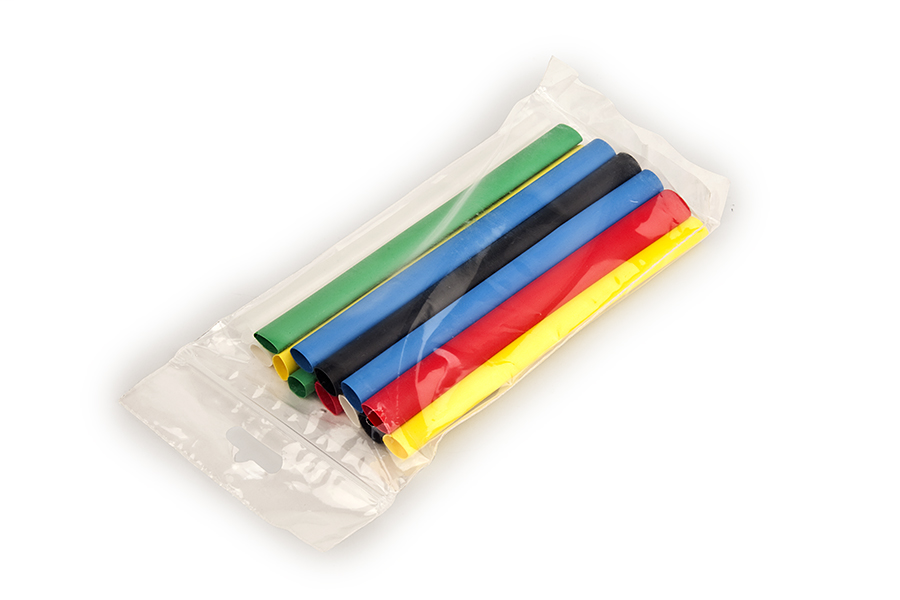

3M FP0.250AS6"P FP 1/4 ASST 6 IN PC

$13.50/ea

In Stock | 29 available at 2 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Balances electrical, physical and chemical properties for various industrial and military applications
Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
Suitable for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging
Made of flexible polyolefin
Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
Flame-retardant tubing is rated for 600V applications

Additional Flammability Rating: 23053/5 class1
Applicable SAE-AMS-DTL-23053 Specifications: 23053/5 class 1
Assortment Kits: Yes
Color Family: Multi-Color
Dielectric Strength: 900 V/mil
Elongation: 400 %
Expanded Inner Diameter: 0.25 in
Expanded Inner Diameter (Metric): 6.35 mm
Flame Retardant: Yes (except clear)
Flammability Rating: UL 224 All Tubing Flame Test
Heat Shrink Type: Single-Wall Polyolefin Heat Shrink Tubing - Heat Shrink Tubing Kits
Inner Diameter After Shrink (Imperial): 0.125 in
Inner Diameter After Shrink (Metric): 3.18 mm
Inner Diameter Before Shrink (Imperial): 0.25 in
Inner Diameter Before Shrink (Metric): 6.35 mm
Material: Flexible Polyolefin
Maximum Operating Temperature (Celsius): 135 Degree Celsius
Maximum Operating Temperature (Fahrenheit): 275 Degree Fahrenheit
Mil Spec: AMS-DTL-23053/5, Class 1
Non-Corrosive: Yes
Operating Temperature (Celsius): -55 to 135 Degrees Celsius
Operating Temperature Range (Celsius): -55 °C to +135 °C
Operating Temperature Range (Fahrenheit): -67 °F to 275 °F
Overall Length (Imperial): 6 in
Overall Length (Metric): 152 mm
Product Form: 6 in (15.24 cm) pieces
Product Key: FP06 FP301 1/4 FPA
Recovered Inner Diameter: 0.13 in
Recovered Inner Diameter (Metric): 3.18 mm
RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
Shrink Ratio: 2:1
Tensile Strength (Imperial): 2400 Pound-Force Per Square Inch
Tubing Type: Single Wall (Thin)
UL Approval: Yes

UPC	05113536621
Family Brand Name	3M
GTiN	00051135366219
Length	6 in
Type	Single (Thin) Wall
Thickness	0.025
Shrink Ratio	2 to 1
Outside Diameter	0.25 in
Dielectric Strength	900 V/mil
Inside Diameter	0.125
Item Long Description	3M Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
Material	Polyolefin
Overall Length	6 in
