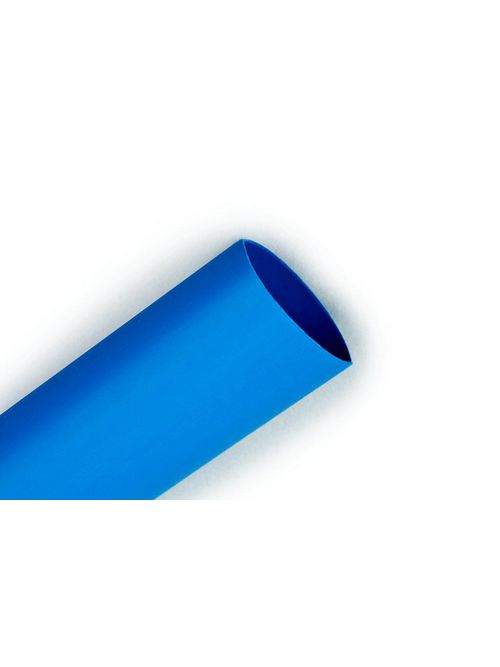

3M FP-301-1/2-Blue-100' Heat Shrink Thin Wall Shrink Tubing

Features

• Balances electrical, physical and chemical properties for various industrial and military applications
• Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
• Suitable for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging
• Made of flexible polyolefin
• Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
• Flame-retardant tubing is rated for 600V applications

Specifications

• Color Family: Blue
• Elongation: 400 Decibel
• Expanded Inner Diameter: 0.5 in
• Expanded Inner Diameter (Metric): 12.70 mm
• Flame Retardant: Yes
• Flammability Rating: UL 224 All Tubing Flame Test
• Heat Shrink Type: Single-Wall Polyolefin Heat Shrink Tubing
• Inner Diameter After Shrink (Imperial): 0.25 in
• Inner Diameter After Shrink (Metric): 6.35 mm
• Inner Diameter Before Shrink (Imperial): 0.5 in
• Inner Diameter Before Shrink (Metric): 12.7 mm
• Material: Flexible Polyolefin
• Maximum Operating Temperature (Celsius): 135 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 275 Degree Fahrenheit
• Mil Spec: AMS-DTL-23053/5, Class 1
• Non-Corrosive: Yes
• Operating Temperature (Celsius): -55 to 135 Degrees Celsius
• Operating Temperature Range (Celsius): -55 °C to +135 °C
• Operating Temperature Range (Fahrenheit): -67 °F to 275 °F
• Overall Length (Imperial): 100 ft
• Overall Length (Metric): 30.5 m
• Product Key: FS08 FP-SM 1/2 FPA
• Recovered Inner Diameter: 0.25 in
• Recovered Inner Diameter (Metric): 6.35 mm
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Shrink Ratio: 2:1
• Tensile Strength (Imperial): 2400 Pound-Force Per Square Inch
• Tubing Type: Single Wall (Thin)
• UL Approval: Yes
• UL File Number: E-39100
