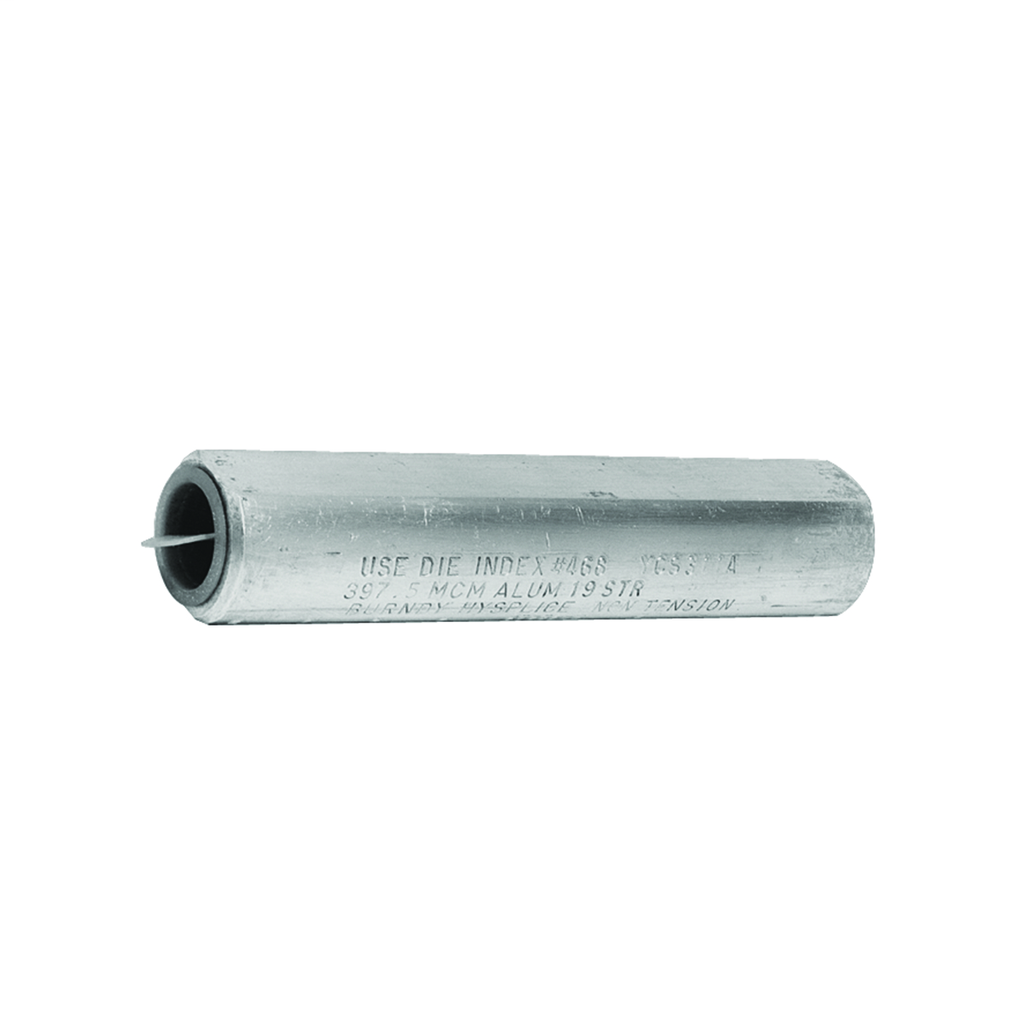

BUR YDS351AT 556 AL FULL TEN SPLICE
Product image thumbnail 0
Product image thumbnail 1
$212.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YDS351AT
Irby Part # 550092

Specifications

General

  • Application: For All Aluminum Compressed And Compact Conductors
  • Connector Type: Splice
  • Die Index: 261
  • Insulation: Y
  • Material: Aluminum
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Sub Brand: HYSPLICE
  • Trade Name: HYSPLICE™
  • Type: YDS-AT
  • UPC: 781810015988
  • UPC 12 Digit: 7818100159888

Dimensions

  • Dimension - B Length fraction: 6-3/10 in
  • Dimension - B Length inch: 6.3 in
  • Dimension - L Length Overall mm: 651 mm
  • Dimension - Length Overall inch: 25.63 in
  • Dimension - Outside Diameter inch: 1.39 in

Conductor Related

  • Conductor - AL Str Size: 556.5
  • Conductor - AL Str Size Range: 556.5
  • Conductor Type: AL C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181001598
GTiN 00781810015988
Size 12-3/4 IN Length
Material Aluminum
Applications For All Aluminum Compressed And Compact Conductors
Family Brand Name Burndy
Sub Brand HYSPLICE
Length 25.63 in
Color Black
Plating Type Unplated
Conductor Type AL C Str-Size
Plated? No
CSA No
