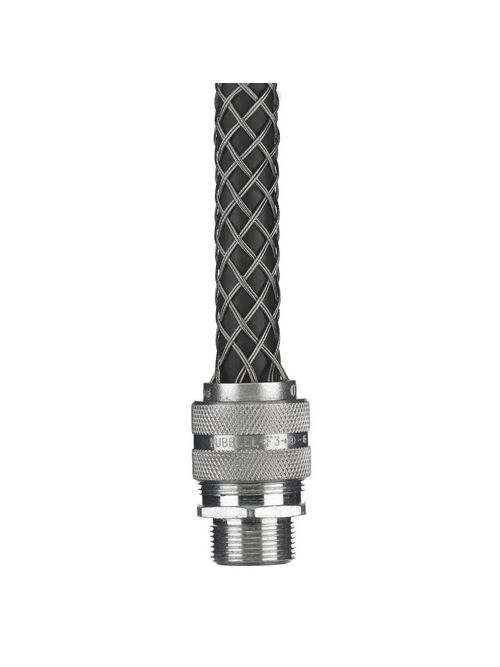

HWDK 074M32021 DELUXE CORD GRIP, 32
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$79.50/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 074M32021
Irby Part # 3497294

Features

  • Aluminum Fiting
  • Stainless steel mesh is corrosion resistant
  • Neoprene bushing is oil and watertight
  • Standard Product

Specifications

  • Cable Diameter Range: 0.625 in-0.750 in
  • Country of Origin: US
  • Each - Height: 2.000 in
  • Each - Length: 11.400 in
  • Each - Width: 2.000 in
  • Hub Size: M32
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
  • Application: Straight Male- Form 4
  • Conductor Range: 0.625-0.75 in (1.59-1.90 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
  • Type: Straight Metric Male Thread

Certifications

  • EU RoHS Indicator: Yes

Overview

Product UPC 78358532773
GTiN 00783585327730
Length 11.4 Inch
Width 2.000 in
Size 32 mm
Type Straight Metric Male Thread
Material Aluminum
Number of Conductors 1
Product Series PG And Metric Threaded
Applications Straight Male- Form 4
Height 2 Inch
Temperature Rating Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Family Brand Name Hubbell Wiring Device Kellems
Sub Brand Kellems Wire Management
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Country of Origin USA
