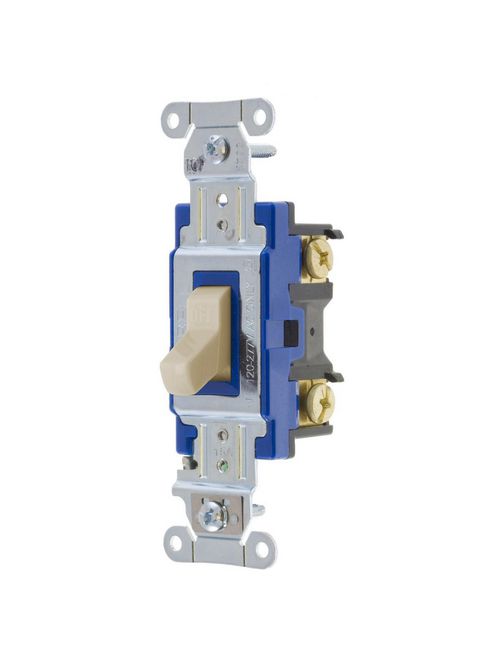

HWDK 1201AL SWITCH, HUBPRO, 1-POLE,
Product image thumbnail 0
Product image thumbnail 1
$5.40/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 1201AL
Irby Part # 3577156

Features

  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.83 in
  • Industry Standard(s): UL Listed
  • Length: 4.18 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 15 A
  • Application: Back and Side Wired
  • Color: Almond
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.18 in x 1.49 in x 1.83 in
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.49 in
  • Wire Size: #14 AWG to #10 AWG
  • Connectivity: Back and Side Wired
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Weight: 0.15 lb
  • Number Of Poles: Single Pole
  • Series: Heavy Duty
  • Style: Single Pole

Certifications

  • EU RoHS Indicator: Yes

Overview

Product UPC 78358510993
GTiN 00783585109930
Length 4.16 Inch
Width 1.49 in
Size Standard Sized
Color Brown
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type General Purpose Switches
Product Series Heavy Duty
Applications Heavy Duty Industrial
Height 1.66 Inch
Weight 0.15 lb
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 15 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50k
Sub Brand AC Toggle Switches
Standard UL
Country of Origin China
Wire Size 14-10 AWG
