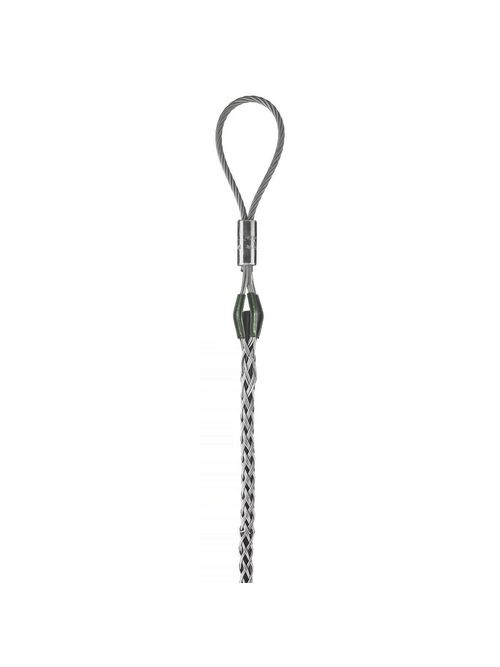

HCI 033021080 OVHD FLX EYE PULL GRI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$565.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 033021080
Irby Part # 3587154

Features

  • Designed for pulling aluminum or copper bare conductor, ground wirres, messenger strands, wire rope and insulated cables
  • Standard Product

Specifications

  • Approx Breaking Strength: 48,000 lbs
  • Cable Diameter Range: 3.00 in-3.49 in
  • Country of Origin: US
  • Each - Height: 4.000 in
  • Each - Length: 76.000 in
  • Each - Width: 4.000 in
  • Industry Standard(s): CSA Certified
  • Performance: Mechanical - Approximate Breaking Strength - 48,000 (213,504) Lbs. (N);Mechanical - Cable Diameter Range - 3.00"-3.49" (7.62-8.86);Mechanical - Working Load - 9600 (42700.8) Lbs. (N)
  • Application: Overhead Pulling
  • Cable Size: 3.00"-3.49" (7.62-8.86)
  • Load: 9600
  • Special Features: Standard Product
  • Standard: CSA Certified
  • Type: Flexible Eye
  • Cable Specification: UL Listed Circuit Wire
  • Color Code: Aluminum
  • Construction: Woven
  • Load Capacity: 9600
  • Material: Steel, Galvanized
  • Material - Mounting Hardware: Non-Mounted
  • Series: Overhead Multiple Strength
  • Style: Closed Mesh, Triple, Double, Single Weave

Certifications

  • EU RoHS Indicator: Yes

Overview

Product UPC 78358532752
GTiN 00783585327525
Length 76 Inch
Width 4.000 in
Type Multiple Strength, Closed Mesh, Standard, Woven
Material Steel
Product Series Overhead Multiple Strength
Applications For Overhead Pulling
Cable Type UL Listed Circuit Wire
Height 4 Inch
Cable Size 3 - 3.49 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Woven
Sub Brand Kellems Wire Management
Finish Galvanized
Color Aluminum
Standard CSA
Eye Length 18 in
Mesh Length 50 in
Used With Aluminum or Copper Bare Conductor, Ground Wires, Messenger Strands, Wire Rope and Insulated Cables
Country of Origin USA
