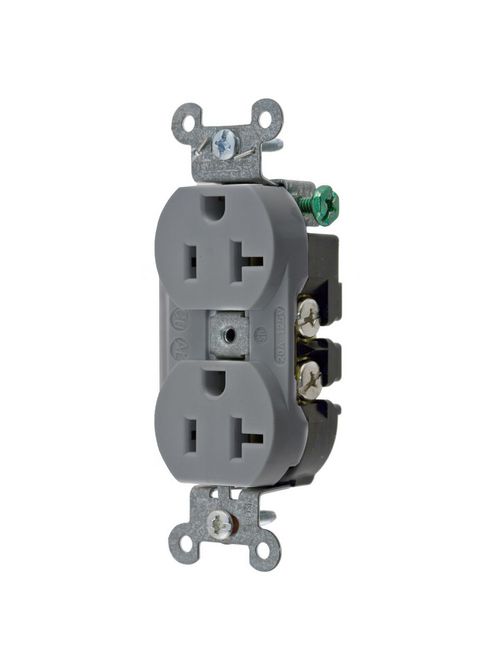

Hubbell Wiring Devices 5352AG 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Gray Straight Blade Duplex Receptacle

Features

• Easy access split circuit tab
• Smooth face
• Triple wipe contacts
• Wrap-around galvanized steel strap
• Self Grounding

Specifications

• Country of Origin: US
• Current / Amperage Rating: 20 A
• Dimensions: 3.28 in x 1.41 in x 1.09 in
• Each - Height: 1.500 in
• Each - Length: 4.000 in
• Each - Width: 1.500 in
• Height: 1.09 in
• Horsepower - Maximum: 1
• Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
• Length: 3.28 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
• Amperage Rating: 20 A
• Application: Hubbell-Pro Heavy Duty
• Color: Gray
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry unless protected by additional means
• Mounting: Screw Mount
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Phase: Single Phase
• Size: 3.28 in x 1.41 in x 1.09 in
• Special Features: Self Grounding
• Standard: UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Standard Duplex
• Voltage Rating: 125 V
• Wattage: 1875 W
• Wire Size: #12 AWG to #10 AWG
• Voltage Rating Description: 125 V
• Width: 1.41 in

Certifications

• EU RoHS Indicator: Yes
