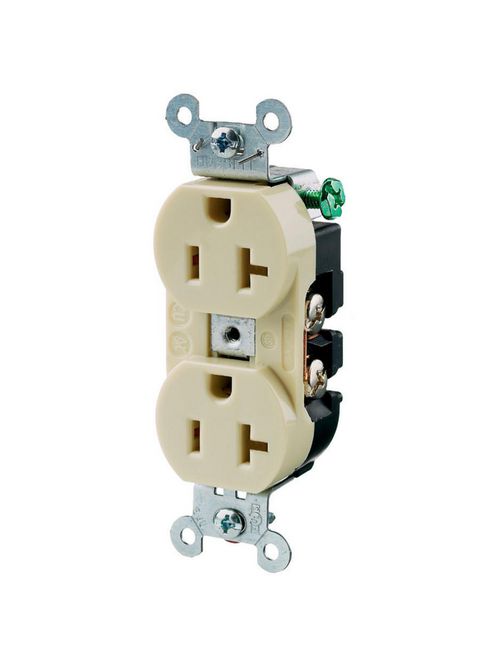

Hubbell Wiring Devices 5352AI 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$3.30/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 5352AI
Irby Part # 3061450

Features

  • Easy access split circuit tab
  • Smooth face
  • Triple wipe contacts
  • Wrap-around galvanized steel strap
  • Self Grounding

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.41 in x 1.09 in
  • Each - Height: 1.500 in
  • Each - Length: 4.000 in
  • Each - Width: 1.500 in
  • Height: 1.09 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
  • Amperage Rating: 20 A
  • Application: Hubbell-Pro Heavy Duty
  • Color: Ivory
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry unless protected by additional means
  • Mounting: Screw Mount
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.41 in x 1.09 in
  • Special Features: Self Grounding
  • Standard: UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
  • Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #12 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.41 in

Certifications

  • EU RoHS Indicator: Yes

Overview

Product UPC 78358510977
GTiN 00783585109770
Length 3.28 Inch
Finish Smooth
Width 1.41 in
Size Standard Sized Product
Color Ivory
Type Traditional, Heavy Duty
Material Thermoplastic
Conductor Size 14 - 12 AWG
Product Series Hubbell,PRO
Applications Heavy Duty
Mounting Type Screw
Height 1.09 Inch
Weight 0.15 lb
Wire Size 12-10 AWG
Connection Type Back and Side Wired
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Self
TC Connection Back and Side Wired
Current 20 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Voltage 125 Volt
Standard CSA 22.2,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL File No. E2186
Temperature Rating Maximum continuous 75?C; minimum -40?C (w/o impact)
Dielectric Strength Withstands 2,000V minimum
Country of Origin China
