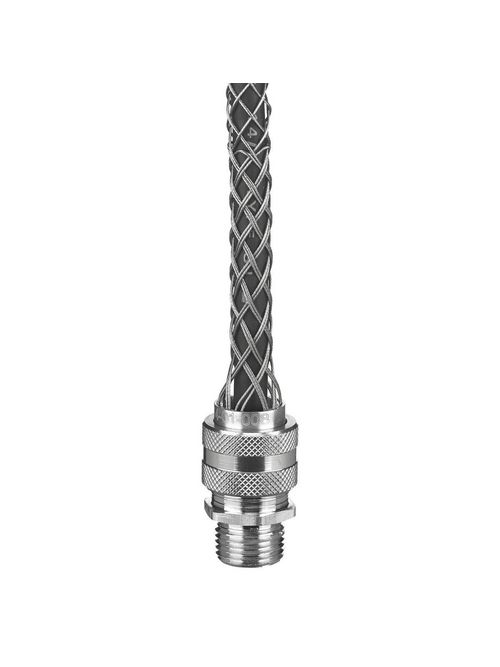

Hubbell Wiring Devices 074011034 2-1/2 Inch Male Threaded 2.187 to 2.312 Inch Straight Deluxe Cord Grip with Mesh
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$282.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 074011034
Irby Part # 36131

Features

  • Stainless steel mesh is corrosion resistant
  • Multiweave grip gives cable arc-of-bend control
  • Endless weave provides easy cable/flexible conduit installation
  • Standard Product

Specifications

  • Cable Diameter Range: 2.187 in-2.312 in
  • Country of Origin: US
  • Each - Height: 3.900 in
  • Each - Length: 23.000 in
  • Each - Width: 3.900 in
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
  • Application: Straight Male- Form 7
  • Conductor Range: 2.187-2.312 in (5.55-5.87 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
  • Type: Straight Male Thread

Certifications

  • EU RoHS Indicator: Yes

Overview

Product UPC 78358532288
GTiN 00783585322889
Length 23 Inch
Width 3.900 in
Size 2 1/2" NPT IN
Type Standard, Deluxe, Straight, Male, Form 7
Material Aluminum
Number of Conductors 1
Product Series Deluxe Cord Grips
Applications Straight Male- Form 7
Cable Type Jacketed UL Listed Cable Only
Height 3.9 Inch
Cable Size 2.187 - 2.312 in
Temperature Rating Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Family Brand Name Hubbell Wiring Device Kellems
TC Connection 2-1/2 in NPT
Sub Brand Kellems Wire Management
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Country of Origin USA
