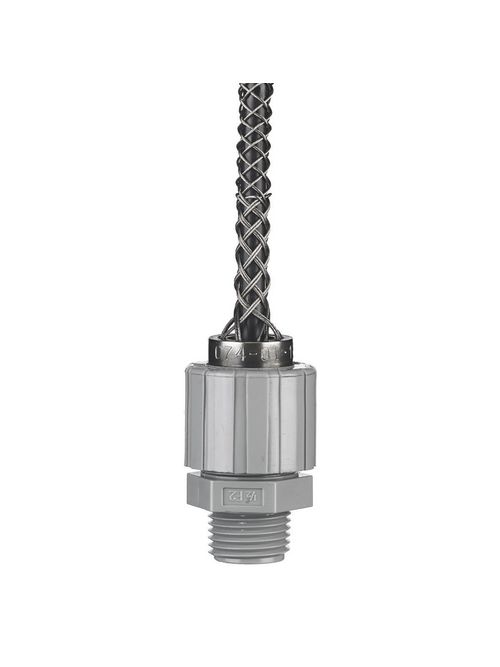

HWDK 074011331 STR NM, DCG, .18-.25
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$63.50/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 074011331
Irby Part # 3701915

Features

  • Aluminum fitting
  • Stainless steel mesh is corrosion resistant
  • Neoprene bushing is oil and watertight
  • Standard Product

Specifications

  • Cable Diameter Range: 0.187 in-0.250 in
  • Country of Origin: US
  • Each - Height: 1.300 in
  • Each - Length: 5.500 in
  • Each - Width: 1.300 in
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –40°F to +225°F (–40°C to +107°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
  • Application: Straight Male- Form 2
  • Conductor Range: 0.187-0.25 in (.47-.63 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -40 Deg F to 225 Deg F (-40 Deg C to 107 Deg C)
  • Type: Straight Male Thread

Certifications

  • EU RoHS Indicator: Yes

Overview

Product UPC 78358549872
GTiN 00783585498720
Length 5.5 Inch
Width 1.300 in
Size 1/2" NPT IN
Color Metallic
Type Standard, Deluxe
Material Nylon
Number of Conductors 1
Product Series Deluxe Cord Grips
Applications For Use in Wet Locations When Used with a Listed Nylon Washer Between Box and Fitting
Cable Type Jacketed UL Listed Cable Only
Height 1.3 Inch
Cable Size 0.187 - 0.25 in
Temperature Rating Minimum -40 Deg F to 225 Deg F (-40 Deg C to 107 Deg C)
Family Brand Name Hubbell Wiring Device Kellems
TC Connection 1/2 in MNPT
Used With Straight Male Form 2 Connector
Sub Brand Kellems Wire Management
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Country of Origin USA
