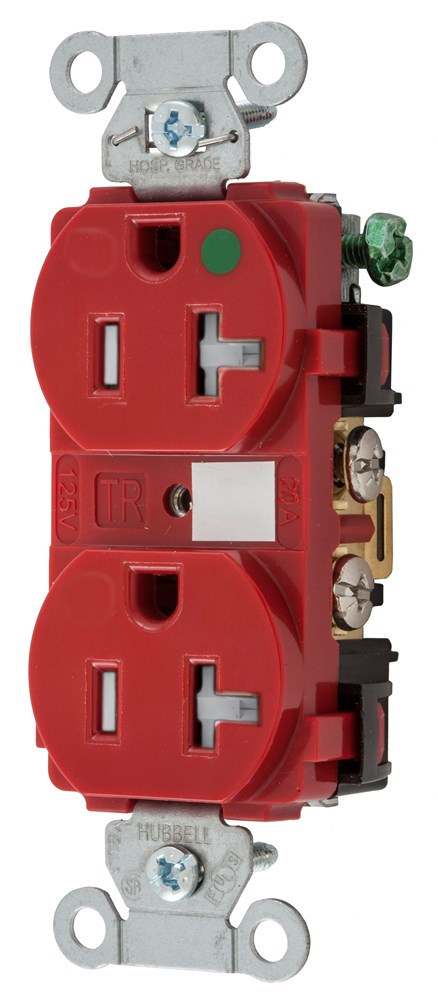

HUBB 8300REDTR 20A 125V HG RCPT
$16.80/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell
Mfg Catalog # 8300REDTR
Irby Part # 3471629

Features

  • Triple wipe contacts
  • Tamper-resistant shutter complies with national electrical code requirements
  • High impact resistant face with circuit I.D. marking area
  • Steel mounting strap
  • 20A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Ordering Information

  • Device Color: Red

Listings

  • Certified to CSA, C22.2, No. 42 File 285
  • NEMA WD-6 Compliant
  • Fed. Spec. W-C-596
  • UL Listed to UL498 File No. E2186

Specifications

  • Base: PBT
  • Mounting Strap: Galvalized steel
  • Clamping Plate: Plated steel
  • Automatic Self-grounding Staple: Stainless steel
  • Power Contacts: Brass
  • Mounting Screws: Zinc plated steel
  • Ground Contact: Brass
  • Face: Nylon

Performance

Electrical

  • Dielectric Voltage: Withstands 2,000V minimum
  • Current Interrupting: Certified for current interrupting at full rated current

Mechanical

  • Terminal Accommodation: #12-10 AWG stranded or solid copper wire only.
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Product Identification: Ratings are a permanent part of the device

Environmental

  • Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Flammability: UL 94V-2

Overview

Product UPC 78358519712
Color Red
Voltage 125 Volt
Face Material Nylon
Family Brand Name Hubbell
Grade Hospital
Base Material PBT
Wire Count 3
Tamper Resistant? Yes
Flamability Class UL 94V-2
Amperage 20 Amp
Number of Poles 2 Pole
