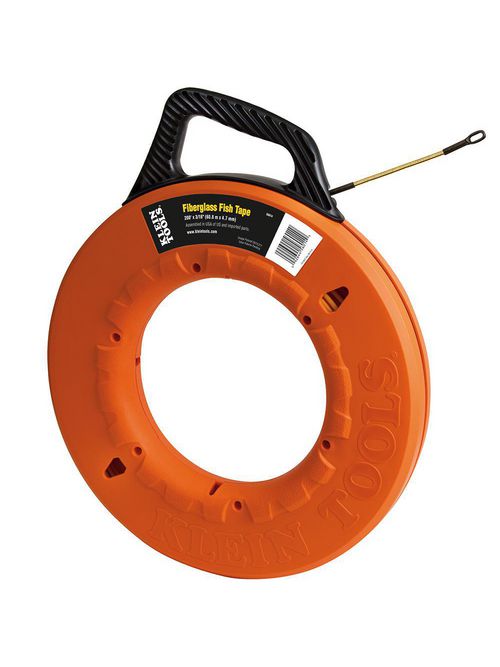

Klein 56014 3/16 Inch x 200 Foot 500 lb Non-Conductive Fiberglass Flexible Fish Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$328.47/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 56014
Irby Part # 3300627

Features

  • Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out
  • Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends
  • The lightweight and strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds
  • The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch (406 mm) case
  • Durable 7-Inch leader helps push through crowded conduit
  • Raised fingergrips help transfer 100-percent of the winding power from your hand and fingers
  • The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
  • Made in the USA
  • Repair kit available (Cat. No. 56115)
  • Replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available

Warnings

  • Wear approved eye protection when feeding, pulling or rewinding fish tape.
  • Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
  • Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
  • Use a safe work position to avoid loss of balance when using fish tape.
  • Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.
  • Never remove screws while fish tape is coiled inside reel.

Specifications

  • Weight: 6.2 lb (2.8 kg)
  • Material: Fiberglass
  • Tape Size: 200' x 3/16" (60.96 m x 0.5 cm)
  • Diameter: 17" (43.2 cm)
  • Style_Name: Fiberglass
  • Replacement Parts: 56025, 56115, 56116, 56120,
  • Item Height (in): 2.0000
  • Item Width (in): 2.5000
  • Item Depth (in): 20.5000
  • Item Weight (lbs): 6.2000

Overview

UPC 09264456014
GTiN 00092644560149
Length 200 ft
Material Fiberglass
Applications For Flexibility and Easy Navigation Through Conduit Runs
Weight 6.200 in
Wire Size 3/16 in
Family Brand Name Klein Tools
Tensile Strength 500 lb
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Diameter 17 in
Width 2.500 in
Depth 20.500 in
Height 2.000 in
