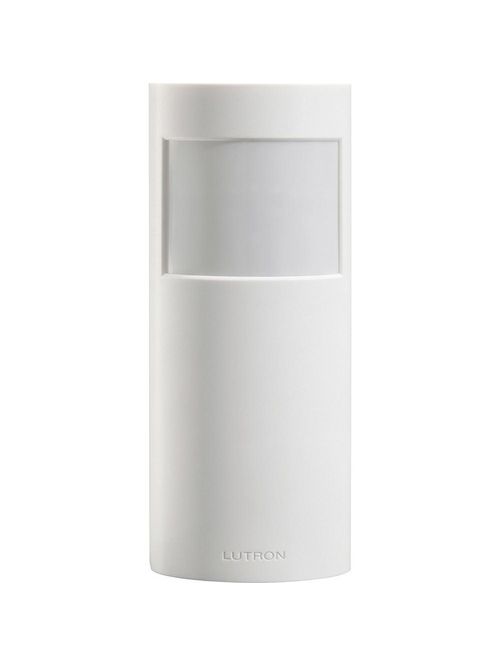

Lutron LRF2-OKLB-P-WH Corner Occupancy Sensor Switch
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # LRF2-OKLB-P-WH
Irby Part # 3238665


  • Battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming or switching devices
  • These sensors detect the heat from people moving within an area to determine when the space is occupied
  • The sensors then wirelessly transmit the appropriate commands to the associated dimming or switching devices to turn the lights on or off automatically
  • They combine both convenience and exceptional energy savings along with ease of installation
  • Has 2 settings available: auto-on/auto-off, and manual-on/auto-off
  • PIR motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 90 degree field of view: 1225 ft2 (113.8 m2) minor motion, 2500 ft2 (232.3 m2) major motion
  • Simple and intuitive adjustments available for timeout, activity, and auto-on settings
  • Accessible test buttons make setup easy
  • Lens illuminates during test mode to verify ideal locations
  • Multiple sensors can be added for extended coverage
  • 10-year batter life design
  • For use with compatible Lutron RF devices only
  • Communicates to various wireless Lutron Clear Connect systems.


  • Mounting: Corner
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Supply Voltage: 3 VDC
  • Sub Brand: Radio Powr Savr
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.35 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Environmental Conditions: For indoor use only
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Wireless wall-mount occupancy/vacancy sensor
  • Country of Origin: US
  • Sensing Range: 1225 ft2 (113.8 m2) minor motion, 2500 ft2 (232.3 m2) major motion, 90 degree field of view.


UPC 02755782358
GTiN 00027557823586
Color White
Operating Temperature 0 To 40 C
Material Plastic
Applications For Lighting Control
Mounting Type Corner, Wall
Country of Origin USA
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Response Time 30 min
Blade Dimensions 46 mm W x 34 mm D x 110 mm H
Environmental Conditions For Indoor Use Only
Enclosure Material Plastic
Sensing Range 1225 ft2 (113.8 m2) minor motion, 2500 ft2 (232.3 m2) major motion, 90 degree field of view.
Sensor Type Passive Infrared
Enclosure Plastic
Sub Brand Radio Powr Savr
Voltage 3 VDC
