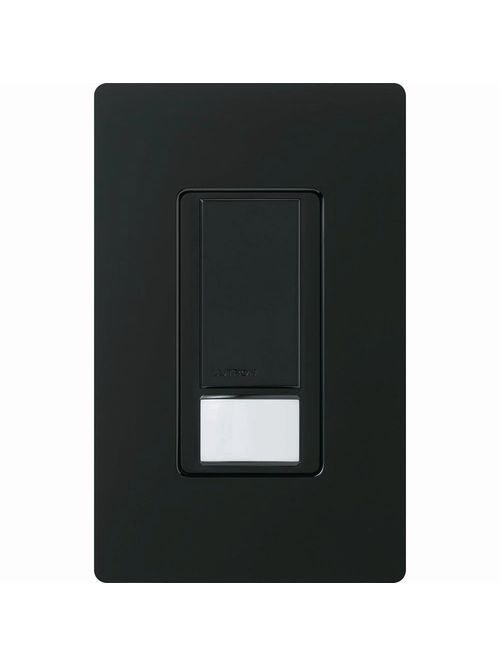

LUT MS-OPS5M-BL MAESTRO PIR OCC 5A

Features

• Combines a Maestro switch with a passive infrared occupancy sensor
• Detects the heat from occupants moving within an area to determine whether the space is occupied
• Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
• Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
• 180 degree sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Can be set to auto-on/auto-off or manual-on/auto-off
• Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
• Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
• Ground wire required.

Specifications

• Body: Plastic
• Mounting: Wallbox
• Brand Name: Lutron
• Enclosure: Plastic
• Sub Brand: Maestro
• Standard: UL, cUL, NOM
• Supply Voltage: 120 VAC
• Application: Lighting Control
• Pack Description: Box
• Pack Type: EA
• Number of Sub Packs: 1
• Total Units Imperial: 1 EA
• Gross Weight per Pack Imperial: 0.2 L
• Length Imperial: 2.25 IN
• Width Imperial: 2.25 IN
• Height Imperial: 4.5 IN
• Operating Temperature: 0 to 40 degrees Celsius
• Type: Occupancy sensor switch, multi-location/3-way/single-pole
• Load: 5 A@120 VAC lights/3 A@120 VAC@ fan/3 A@120 VAC@light and fan
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Sensor: Passive infrared motion detection with dependable Lutron XCT technology
• Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
• Country of Origin: CN
