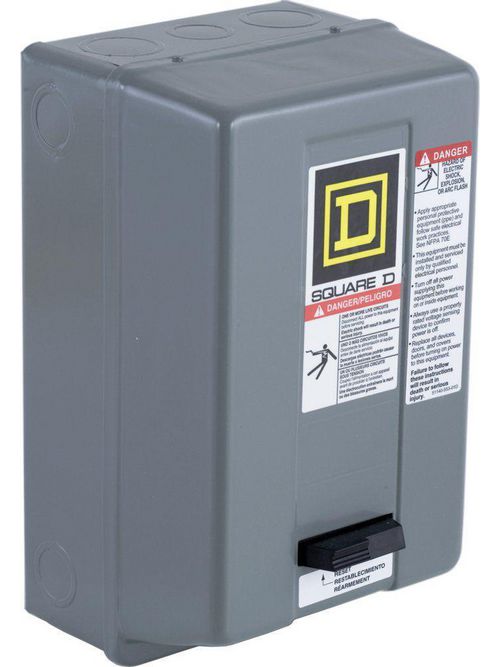

Square D 8536SBG2V02S <1000 VAC Motor Control Starter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # 8536SBG2V02S
Irby Part # 49990

Features

  • Non-reversing Magnetic Starters
  • Used to switch AC inductive motors
  • Available from NEMA Size 00 to NEMA Size 7
  • Supplied with VAC coil 50/60 Hz.
  • Rated for 600 volts maximum, up to 600 HP and with a maximum of 810A
  • Bellcrank design is used to get improved electrical and mechanical life
  • Replaceable coil and contacts
  • UL and CSA approvals

Specifications

Main

  • Product Type: Motor starter
  • Product Range: S
  • Starter Type: Non reversing

Complementary

  • Nema Size: 0
  • Rated Current: 18 A
  • Number Of Poles: 3P
  • Maximum Voltage Rating: 600 V AC
  • Phase: 3 phase
  • Type Of Overload: Melting alloy 3
  • Horsepower Rating: 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
  • Sccr: Circuit-breaker: 5 kA at 600 V AC || Fuse: 5 kA at 600 V AC
  • Coil Voltage: 110 V AC 50 Hz || 120 V AC 60 Hz
  • Control Circuit Type: Separate control circuit
  • Control Units: No control units
  • Pilot Light: Without pilot light
  • Auxiliary Contacts: Without
  • Terminal Type: Screw clamp terminals
  • Height: 10.00 in (254.00 mm)
  • Width: 6.00 in (152.40 mm)
  • Depth: 5.56 in (141.22 mm)

Environment

  • Enclosure Type: NEMA 1 painted sheet steel
  • Certifications: UL Listed || CSA || NEMA

Ordering And Shipping Details

  • Category: 21191 - 8502,36 SA,SB(NOT S*R,T,W)
  • Discount Schedule: CP1
  • GTIN: 00785901864608
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: MX

Offer Sustainability

  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • EU RoHs Directive: Not compliant
  • Pvc Free: Yes

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590186460
GTiN 00785901864608
Warranty Length 18 mth
Size 141 MM,152 MM,254 MM
Voltage 600 Volt
Applications USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Country of Origin Mexico
Family Brand Name Square D by Schneider Electric
Number of Phases 3 Phase
Line Rated Current 18 A
TC Connection SCREW CLAMP TERMINALS
Power Supply 120VAC@60HZ - 110VAC@50HZ
Reset Type MELTING ALLOY 3 THERMAL UNITS
Enclosure NEMA 1 PAINTED SHEET STEEL
Nema Size 0
Sub Brand S
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Width 6.00 in
Depth 5.56 in
Height 10.00 in
Certifications CSA,NEMA,UL Listed
Current 18 A
Number of Poles 3 Pole
NEMA 0
