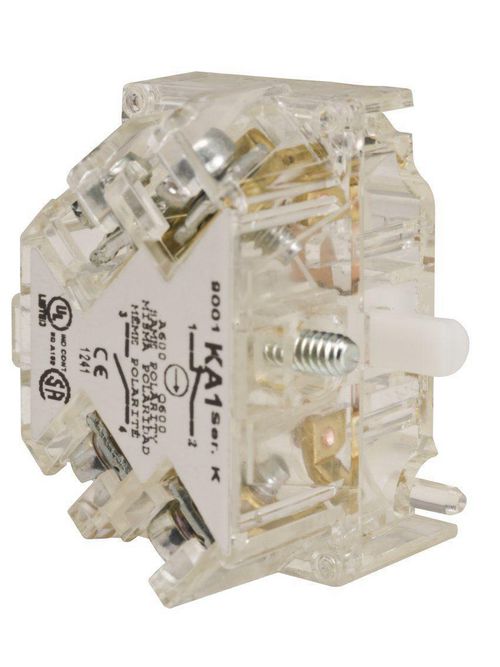

Square D 9001KA1 600 VAC 10 Amp 1NO 1NC Silver Alloy Screw Clamp Terminal Push Button Contact Block
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # 9001KA1
Irby Part # 19144

Specifications

Main

  • Range Of Product: Harmony 9001K
  • Product Or Component Type: Contact block with protected terminals
  • Device Short Name: 9001K

Complementary

  • Product Weight: 0.06 lb(US) (0.027 kg)
  • Contacts Type And Composition: 1 C/O
  • Contact Operation: Standard
  • Positive Opening: Without
  • Connections - Terminals: Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
  • Tightening Torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
  • Shape Of Screw Head: Cross slotted
  • Contacts Material: Silver alloy contacts
  • Short-Circuit Protection: 10 A cartridge fuse IEC 60947-5-1
  • Ith Cnvtl Free Air Therm Crrt: 10 A
  • Ui Rated Insulation Voltage: 250 V 3)IEC 60947-1
  • Uimp Rated Imp Wstd Voltage: 2.5 kV IEC 60947-1
  • Ie Rated Operational Current: 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
  • Icm Rated Sc Making Cap: 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13, 7200 VA || 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13
  • Rated Breaking Capacity: 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Environment

  • Protective Treatment: TC
  • Ambient Air Temp For Storage: -40…158 °F (-40…70 °C)
  • Ambient Air Temp For Op: -13…158 °F (-25…70 °C)
  • Electrical Shock Protect Class: Class II IEC 61140
  • IP Degree Of Protection: IP20 IEC 60529
  • Standards: EN/IEC 60947-5-1 || JIS C 4520 || UL 508 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-4
  • Product Certifications: NEMA || UL 508
  • Vibration Resistance: 7 gn 2…500 Hz)IEC 60068-2-6
  • Shock Resistance: 50 gn IEC 60068-2-27

Ordering And Shipping Details

  • Category: 21434 - 9001 KA CONTACT BLOCKS
  • Discount Schedule: CS1
  • GTIN: 00785901880004
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: MX

Offer Sustainability

  • Green Premium Status: Green Premium product
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • EU RoHs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury Free: Yes
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590188000
GTiN 00785901880004
Weight 0.06 lb
Country of Origin Mexico
Standard CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Family Brand Name Square D by Schneider Electric
Certifications NEMA,UL 508
Contact Material Silver Alloy
TC Connection SCREW CLAMP
Contact Configuration 1 NO - 1 NC
Sub Brand HARMONY
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty Length 18 mth
Operating Temperature -25-70 AC
Voltage 600 Volt
