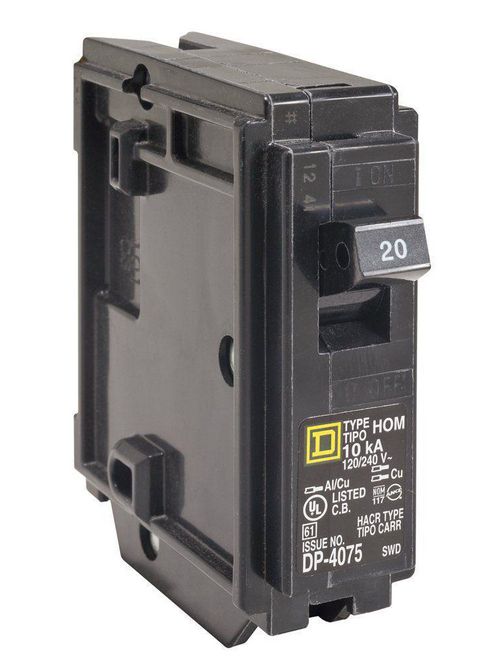

Square D HOM120 120/240 Volt 20 Amp Miniature Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
In Stock | 599 available at 7 locations
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # HOM120
Irby Part # 18481

Specifications

Main

  • Product: Miniature circuit-breaker
  • Range: Homeline
  • Current Rating: 20 A
  • Certifications: UL Listed
  • Voltage Rating: 120/240 V AC
  • Mounting Type: Plug-in
  • Number Of Poles: 1P
  • Short Circuit Current Rating: 10 kA
  • Number Of Spaces: 1
  • Circuit Breaker Type: Standard
  • Ratings: HACR and Switching Duty rated
  • Electrical Connection: Clamp terminal for 2 cables
  • Wire Size: AWG 14...AWG 8 aluminium/copper)1 || AWG 14...AWG 10 copper)2

Complementary

  • Height: 3.13 in (79.50 mm)
  • Width: 1 in (25.40 mm)
  • Depth: 2.98 in (75.69 mm)
  • Tightening Torque: 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) AWG 14...AWG 8)

Environment

  • Ambient Air Temp For Op: 104 °F (40 °C)

Ordering And Shipping Details

  • Category: 00046 - HOM/T 15-30A 1P; 15-60A 2P
  • Discount Schedule: DE3D
  • GTIN: 00785901065210
  • Returnability: Yes
  • Country Of Origin: US

Offer Sustainability

  • Green Premium Status: Green Premium product
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Contractual Warranty

  • Warranty: Lifetime

Overview

UPC 78590106521
GTiN 00785901065210
Length 2.98 in
Warranty Length Lifetime
Voltage 120/240 Volt
Applications PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Mounting Type Plug-in
Country of Origin USA
Family Brand Name Square D by Schneider Electric
TC Connection SCREW #14-8 AWG(AL/CU)
Short Circuit Current 10 kA
Interrupt Rating 10KA
Sub Brand HOMELINE
CA Prop65 Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Width 1 in
Operating Temperature 40 AC
Depth 2.98 in
Height 3.13 in
Circuit Breaker Type Standard
Current 20 A
Number of Poles 1 Pole
