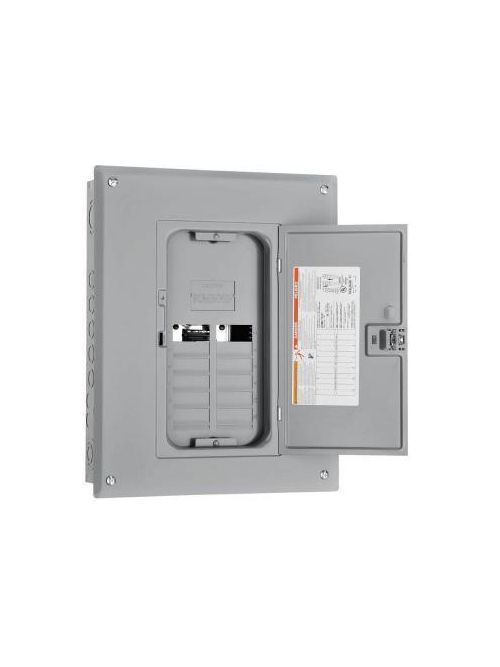

Square D HOM4080L225PGC 120/240 VAC 225 Amp 1-Phase 40-Space 80-Circuit NEMA 1 Load Center with Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # HOM4080L225PGC
Irby Part # 3499907

Specifications

Main

  • Product Type: Load Center
  • Marketing Trade Name: Homeline
  • Load Center Type: Main lugs
  • Rated Current: 225 A
  • Number Of Spaces: 40
  • Number Of Circuits: 80
  • Enclosure Rating: NEMA 1 indoor
  • Cover Type: Combination flush/surface cover
  • Electrical Connection: Lugs
  • Included Options: Grounding bar 1)

Complementary

  • Short Circuit Current Rating: 10 kA
  • Number Of Tandem Breakers: 40
  • Number Of Phases: 1 phase
  • Rated Operational Voltage: 120/240 V AC
  • Wire Size: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
  • Device Composition: Grounding bar included (not installed)
  • Wiring Configuration: 3-wire
  • Cover Finish: Gray baked enamel
  • Busbar Material: Tin plated aluminium busbar
  • Enclosure Material: Welded sheet steel
  • Surface Finish: Baked enamel Gray
  • Box Number: 12
  • Height: 39.37 in (1000 mm)
  • Width: 14.25 in (362 mm)
  • Depth: 3.74 in (95 mm)

Environment

  • Ambiant Air Temperature For Operation: 23 °F (-5 °C) || 104 °F (40 °C)
  • Product Certifications: UL E-6294

Ordering And Shipping Details

  • Category: 00045 - HOM LC&CVR,12-42 CKT,NEMA1
  • Discount Schedule: DE3C
  • GTIN: 00785901978176
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: US

Offer Sustainability

  • Green Premium Status: Green Premium product
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Overview

UPC 78590197817
GTiN 00785901978176
Finish Gray Baked Enamel
Width 14.25 in
Voltage 120/240 Volt
Applications DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Depth 3.74 in
Height 39.37 in
Country of Origin USA
Cable Size AWG 4...250 KCMIL COPPER-AWG 4...300 KCMIL ALUMINIUM
Family Brand Name Square D by Schneider Electric
Number of Phases 1 Phase
Certifications UL E-6294
Short Circuit Current 10 kA
Cover Type COMBINATION FLUSH/SURFACE COVER
Number of Circuits 80
Enclosure Material Welded Sheet Steel
Bus Rating TIN PLATED ALUMINIUM
Interrupt Rating 10 KA
Enclosure 12,NEMA 1 INDOOR,BAKED ENAMEL GREY,GRAY BAKED ENAMEL,WELDED SHEET STEEL
Sub Brand HOMELINE
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Amperage 225 Amp
Number of Spaces 40
Current 225 A
