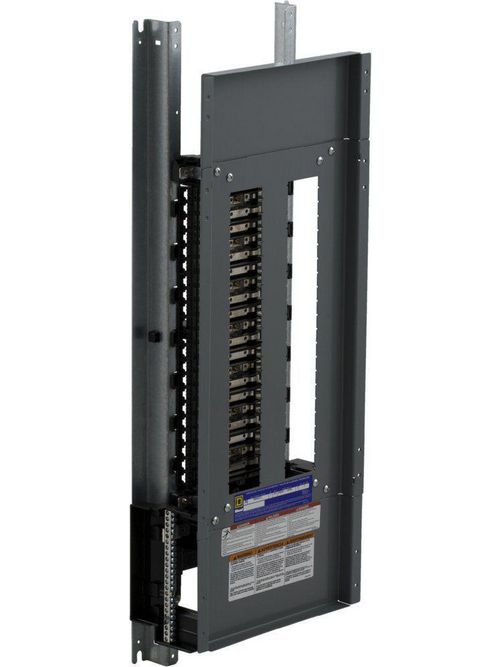

Square D NQ442L2C 240 VAC 48 VDC 225 Amp 3-Phase 4-Wire 42-Circuit Panelboard Interior
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # NQ442L2C
Irby Part # 3064976

Specifications

Main

  • Panelboard Type: Main lugs
  • Branch Circuit Breaker Type: QOB || QOB-VH || QHB
  • Busbar Material: Copper

Complementary

  • Number Of Spaces: 42
  • Enclosure Nominal Height: 38 in (965.20 mm)
  • Enclosure Nominal Width: 20 in (508.00 mm)
  • Enclosure Nominal Depth: 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
  • In Rated Current: 225 A
  • Iu Rated Interrupted Current: 10 kA || 22 kA || 65 kA
  • Wiring Configuration: 4-wire
  • Number Of Phases: 3 phase
  • Voltage Rating: 240 V AC || 48 V DC
  • Connections - Terminals: Lug line AWG 6...350 kcmil aluminium || Lug neutral AWG 6...350 kcmil aluminium
  • Product Weight: 19.36 lb(US) (8.78 kg)
  • Tightening Torque: 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) || 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) || 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil)
  • Width: 10.44 in (265.18 mm)
  • Height: 33.00 in (838.20 mm)

Environment

  • Standards: CSA || UL

Ordering And Shipping Details

  • Category: 09151 - NQ RTA PANELBOARDS
  • Discount Schedule: PE1A
  • GTIN: 00785901507871
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: MX

Offer Sustainability

  • Green Premium Status: Green Premium product
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Mercury Free: Yes

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590150787
GTiN 00785901507871
Warranty Length 18 mth
Size 20 INCH WIDE ENCLOSURE
Voltage 240 Volt
Material Copper
Applications NQ PANELBOARDS
Country of Origin Mexico
Family Brand Name Square D by Schneider Electric
Circuit Breaker Type QHB,QOB,QOB-VH
Number of Phases 3 Phase
Sub Brand NQ
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Width 10.44 in
Height 33.00 in
Weight 19.36 lb
Standard CSA,UL
Amperage 225 Amp
