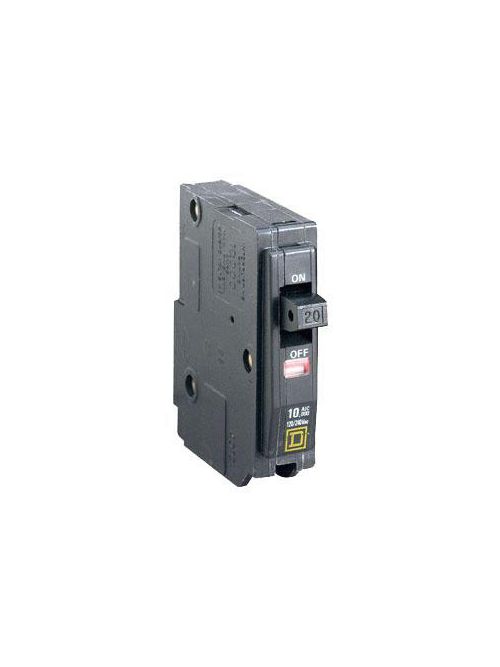

Square D QO120 120/240 Volt 20 Amp Plug-On Miniature Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
In Stock | 971 available at 9 locations
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # QO120
Irby Part # 18830

Specifications

Main

  • Product: Miniature circuit-breaker
  • Range: QO
  • Current Rating: 20 A
  • Voltage Rating: 120/240 V AC || 120 V AC || 48 V DC
  • Mounting Type: Plug-in
  • Number Of Poles: 1P
  • Circuit Breaker Type: Standard
  • Ratings: HACR and Switching Duty rated
  • Electrical Connection: Pressure plate

Complementary

  • Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
  • Number Of Panel Spaces: 1
  • Wire Size: AWG 14...AWG 8 copper or aluminium
  • Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) AWG 8...AWG 2)
  • Height: 3 in (76.20 mm)
  • Depth: 2.91 in (73.91 mm)
  • Width: 0.75 in (19.05 mm)

Environment

  • Certifications: UL Listed || CSA
  • Ambient Rating: 104 °F (40 °C)

Ordering And Shipping Details

  • Category: 00004 - QO,QOT 10-30A 1P;10-60A 2P
  • Discount Schedule: DE2A
  • GTIN: 00785901400103
  • Nbr. Of Units In Pkg.: 10
  • Returnability: Yes
  • Country Of Origin: US

Offer Sustainability

  • Green Premium Status: Green Premium product
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes
  • Halogen Content Performance: Halogen free product

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590140010
GTiN 00785901400103
Length 2.91 in
Warranty Length 18 mth
Voltage 120 Volt
Applications PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Mounting Type Plug-in
Depth 2.91 in
Country of Origin USA
Family Brand Name Square D by Schneider Electric
TC Connection PRESSURE PLATE #14 TO #8 AWG(AL/CU)
Short Circuit Current 10 kA
Interrupt Rating 10KA
Sub Brand QO
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Width 0.75 in
Operating Temperature 40 AC
Height 3 in
Circuit Breaker Type Standard
Current 20 A
Number of Poles 1 Pole
