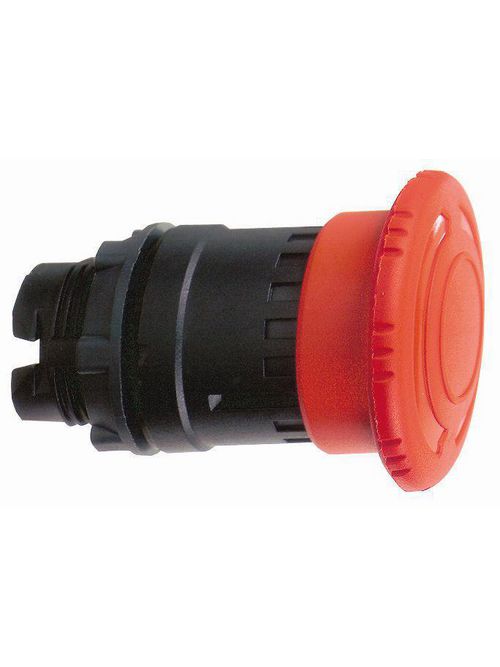

Square D ZB5AS844 22 mm Red Trigger Action Turn-to-Release Mushroom Head Maintained Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # ZB5AS844
Irby Part # 155452

Specifications

Main

  • Range Of Product: Harmony XB5
  • Product Or Component Type: Head for emergency stop push-button
  • Product Destination: Emergency stop push-button
  • Device Short Name: ZB5
  • Bezel Material: Dark grey plastic
  • Head Type: Standard
  • Mounting Diameter: 0.87 in (22 mm)
  • Sale Per Indivisible Qty: 1
  • Shape Of Signaling Unit Head: Round
  • Type Of Operator: trigger action and mechanical latching
  • Reset: Turn to release
  • Operator Profile: Red mushroom Ø 40 mm, unmarked
  • Device Presentation: Basic element

Complementary

  • Cad Overall Width: 1.57 in (40 mm)
  • Cad Overall Height: 1.57 in (40 mm)
  • Cad Overall Depth: 2.24 in (57 mm)
  • Product Weight: 0.10 lb(US) (0.046 kg)
  • Mechanical Durability: 300000 cycles
  • Station Name: XALD 1 cut-out || XALK 1 cut-out
  • Electrical Composition Code: C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
  • Compatibility Code: ZB5

Environment

  • Protective Treatment: TH
  • Ambient Air Temp For Storage: -40…158 °F (-40…70 °C)
  • Ambient Air Temp For Op: -40…158 °F (-40…70 °C)
  • Overvoltage Category: Class II IEC 60536
  • IP Degree Of Protection: IP66 IEC 60529 || IP67 || IP69 || IP69K
  • Nema Degree Of Protection: NEMA 13 || NEMA 4X
  • Resistance High Press Washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
  • IK Degree Of Protection: IK03 IEC 50102
  • Standards: UL 508 || EN/ISO 13850 || IEC 60364-5-53 || EN/IEC 60204-1 || GB 14048.5 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
  • Product Certifications: CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || GL || BV || RINA
  • Vibration Resistance: 5 gn 2…500 Hz)IEC 60068-2-6
  • Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ordering And Shipping Details

  • Category: 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW
  • Discount Schedule: CS2
  • GTIN: 00785901376682
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: CZ

Offer Sustainability

  • Green Premium Status: Green Premium product
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590137668
GTiN 00785901376682
Size 22MM ROUND
Applications RED UNMARKED
Weight 0.10 lb
Country of Origin Czech Republic
Standard CSA C22.2 No 14,EN/IEC 60204-1,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,EN/ISO 13850,GB 14048.5,IEC 60364-5-53,JIS C8201-1,JIS C8201-5-1,UL 508
Family Brand Name Square D by Schneider Electric
Certifications BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),RINA,UL Listed
Actuator MUSHROOM BUTTON: 40MM
Bezel Material Dark Grey Plastic
Enclosure NEMA 1/2/3/4/4X/13
Indicator BLACK
Sub Brand HARMONY
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty Length 18 mth
Operating Temperature -40-70 AC
