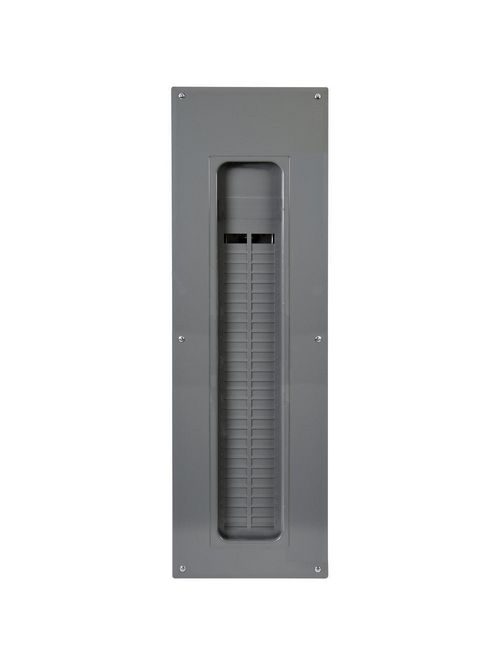

Square D HOM60120L225PC 120/240 VAC 225 Amp 1-Phase 60-Space 120-Circuit NEMA 1 Load Center with Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # HOM60120L225PC
Irby Part # 3711019

Specifications

Main

  • Product Type: Load Center
  • Marketing Trade Name: Homeline
  • Load Center Type: Main lugs
  • Rated Current: 225 A
  • Number Of Spaces: 60
  • Maximum Number Of Single Pole Circuits: 120
  • Enclosure Rating: NEMA 1 indoor
  • Cover Type: Combination flush/surface cover
  • Electrical Connection: Lugs

Complementary

  • Max Short Circuit Current Rating: 10 kA
  • Maximum Number Of Tandem Breakers: 60
  • Number Of Phases: 1 phase
  • Voltage Rating: 120/240 V AC
  • Wire Size: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
  • Ground Bar: Grounding bar (ordered separately)
  • Wiring Configuration: 3-wire
  • Busbar Material: Tin plated aluminium busbar
  • Enclosure Material: Welded sheet steel
  • Surface Finish: Baked enamel Gray
  • Box Number: 25
  • Height: 48.62 in (1235 mm)
  • Width: 14.25 in (362 mm)
  • Depth: 3.74 in (95 mm)

Environment

  • Ambient Air Temperature For Operation: 23 °F (-5 °C) || 104 °F (40 °C)
  • Product Certifications: UL listed file E-6294

Ordering And Shipping Details

  • Category: 00045 - HOM LC&CVR,12-42 CKT,NEMA1
  • Discount Schedule: DE3C
  • GTIN: 00785901974314
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: US

Overview

UPC 78590197431
Item Long Description The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 60 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 48.62 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. HOM Homeline load centers are UL Listed.
GTiN 00785901974314
Finish Gray Baked Enamel
Width 14.25 in
Voltage 120/240 Volt
Type Load Center
Applications DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Depth 3.74 in
Height 48.62 in
Country of Origin USA
Cable Size #4 TO #250 AWG/KCMIL(CU)/#4 TO #250 AWG/KCMIL(AL)
Family Brand Name Square D by Schneider Electric
Circuit Breaker Type HOMELINE
Number of Phases 1 Phase
Certifications UL Listed File E-6294
Short Circuit Current 10 kA
Cover Type Combination flush/surface cover
Number of Circuits 120
Enclosure Material Welded Sheet Steel
Number of Spaces 60
Bus Rating TIN PLATED ALUMINIUM
Interrupt Rating 10 kA
Enclosure 25;Welded sheet steel
Sub Brand HOMELINE
CA Prop65 Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Amperage 225 Amp
Current 225 A
Wire Size AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
Surface Finish Baked enamel Gray
Operating Temperature 23 F (-5 C) || 104 F (40 C)
