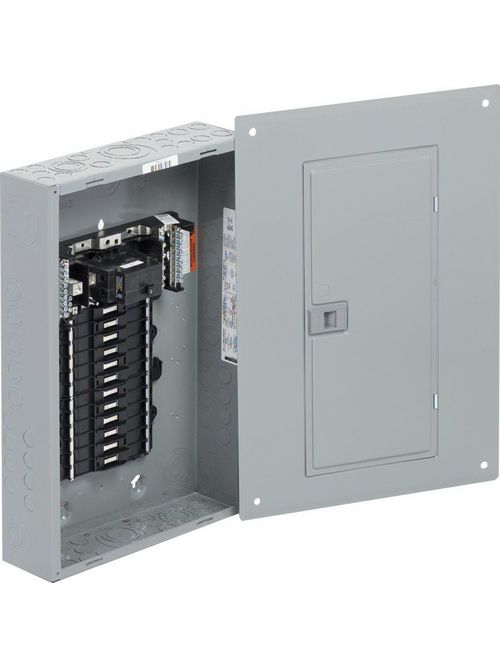

Square D QO124M100PC 100 Amp 1-Phase 3-Wire 24-Circuit NEMA 1 Main Breaker Load Center
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # QO124M100PC
Irby Part # 3895677

Specifications

Main

  • Marketing Trade Name: QO
  • Product Type: Load Center
  • Cover Type: Combination flush/surface cover

Complementary

  • Tightening Torque: Cover 20 lb.in
  • Load Center Type: Main breaker
  • Rated Current: 100 A
  • Number Of Spaces: 24
  • Max Short Circuit Current Rating: 22 kA
  • Maximum Number Of Single Pole Circuits: 34
  • Maximum Number Of Tandem Breakers: 10
  • Number Of Phases: 1 phase
  • Wire Size: AWG 6...AWG 2/0 aluminium/copper
  • Ground Bar: Grounding bar (ordered separately)
  • Electrical Connection: Lugs
  • Wiring Configuration: 3-wire
  • Busbar Material: Tin plated copper busbar
  • Enclosure Material: Welded sheet steel
  • Surface Finish: Baked enamel Gray
  • Box Number: 7
  • Height: 20.91 in (531 mm)
  • Width: 14.25 in (362 mm)

Environment

  • Enclosure Rating: NEMA 1 indoor
  • Ambient Air Temperature For Operation: 23 °F (-5 °C) || 104 °F (40 °C)
  • Product Certifications: UL Listed

Ordering And Shipping Details

  • Category: 10001 - QO PON 1PH LC,12-60 CKT, MB N1
  • Discount Schedule: DE3A
  • GTIN: 00785901978480
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: US

Offer Sustainability

  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Overview

UPC 78590197848
Item Long Description QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO load center has a plug on neutral (PoN) convertible main circuit breaker that is rated at 100A 120/240 VAC single phase. QO load center provides a 22 kA breaking capacity. This system provides 24 spaces in a NEMA 1 indoor enclosure with a combination flush/surface cover. A ground bar can be ordered for this load center. The lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This QO load center has a height of 20.92 inches, a width of 14.25 inches and a depth of 3.75 inches. QO load center is UL Listed.
GTiN 00785901978480
Finish Baked Enamel Gray
Width 14.25 in
Type Load Center
Height 20.91 in
Country of Origin USA
Family Brand Name Square D by Schneider Electric
Number of Phases 1 Phase
Certifications UL
Enclosure Material Welded Sheet Steel
Interrupt Rating 22 kA
Sub Brand QO
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Voltage 120/240 VAC
Cable Size AWG 6...AWG 2/0 ALUMINIUM/COPPER
Amperage 100 Amp
Cover Type Combination flush/surface cover
Number of Spaces 24
Enclosure 7;Welded sheet steel
Operating Temperature 23 F (-5 C) || 104 F (40 C)
Current 100 A
Wire Size AWG 6...AWG 2/0 aluminium/copper
