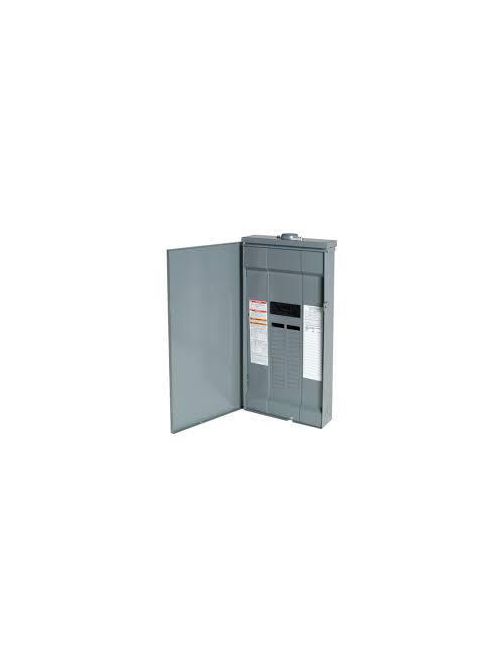

Square D QO130M200PRB 240 VAC 200 Amp 1-Phase 3-Wire Convertible Main Breaker Load Center Box and Interior
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # QO130M200PRB
Irby Part # 3712340

Specifications

Main

  • Marketing Trade Name: QO
  • Product Type: Load Center
  • Enclosure Type: Weatherproof enclosure
  • Cover Type: Surface cover

Complementary

  • Load Center Type: Main breaker
  • Rated Current: 200 A
  • Number Of Spaces: 30
  • Max Short Circuit Current Rating: 22 kA
  • Maximum Number Of Single Pole Circuits: 40
  • Maximum Number Of Tandem Breakers: 10
  • Number Of Phases: 1 phase
  • Wire Size: AWG 4...250 kcmil aluminium/copper
  • Ground Bar: Grounding bar (ordered separately)
  • Electrical Connection: Lugs
  • Wiring Configuration: 3-wire
  • Busbar Material: Tin plated copper busbar
  • Enclosure Material: Welded galvannealed steel
  • Surface Finish: Baked enamel Gray
  • Box Number: 6R
  • Height: 29.84 in (758 mm)
  • Width: 14.76 in (375 mm)

Environment

  • Enclosure Rating: NEMA 3R outdoor
  • Ambient Air Temperature For Operation: 23 °F (-5 °C) || 104 °F (40 °C)
  • Product Certifications: UL Listed

Ordering And Shipping Details

  • Category: 10002 - QO PON 1PH LC,12-60 CKT, N3R
  • Discount Schedule: DE3A
  • GTIN: 00785901229001
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: US

Offer Sustainability

  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Overview

UPC 78590122900
Item Long Description QO Circuit Breaker Load Centers, QO130M200PRB, from Square D are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
GTiN 00785901229001
Finish Baked Enamel Gray
Width 14.76 in
Type LOAD CENTER
Height 29.84 in
Country of Origin USA
Family Brand Name Square D by Schneider Electric
Number of Phases 1 Phase
Certifications UL
Enclosure Material Steel
Interrupt Rating 22 KA
Sub Brand QO
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Voltage 120/240 VAC
Cable Size AWG 4...250 KCMIL ALUMINIUM/COPPER
Amperage 200 Amp
Cover Type Surface cover
Number of Spaces 30
Enclosure 6R,NEMA 3R OUTDOOR,BAKED ENAMEL GREY,WELDED GALVANNEALED STEEL
Operating Temperature 23 F (-5 C) || 104 F (40 C)
Current 200 A
Wire Size AWG 4...250 kcmil aluminium/copper
Enclosure Type Weatherproof enclosure
