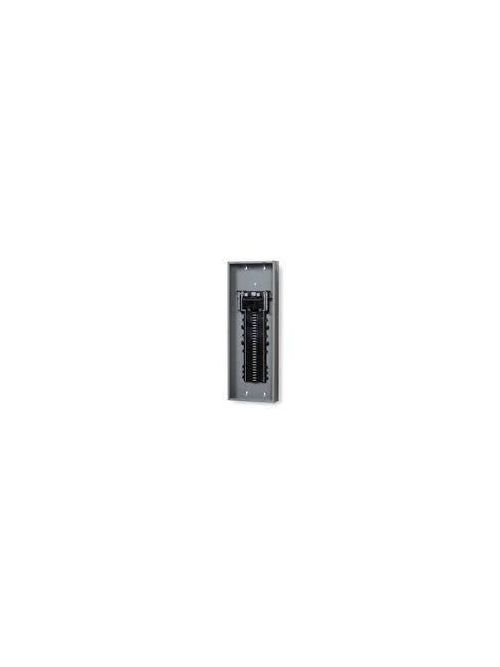

Square D QO142L225PGRB 240 VAC 225 Amp 1-Phase 3-Wire Convertible Main Lug Load Center Box and Interior
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
*Call For Price*
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # QO142L225PGRB
Irby Part # 3704776

Specifications

Main

  • Marketing Trade Name: QO
  • Product Type: Load Center
  • Enclosure Type: Weatherproof enclosure
  • Cover Type: Surface cover

Complementary

  • Tightening Torque: Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
  • Load Center Type: Main lugs
  • Rated Current: 225 A
  • Number Of Spaces: 42
  • Max Short Circuit Current Rating: 65 kA
  • Maximum Number Of Single Pole Circuits: 52
  • Maximum Number Of Tandem Breakers: 10
  • Number Of Phases: 1 phase
  • Wire Size: AWG 6...300 kcmil aluminium/copper
  • Ground Bar: Grounding bar included (not installed)
  • Electrical Connection: Lugs
  • Wiring Configuration: 3-wire
  • Busbar Material: Tin plated copper busbar
  • Enclosure Material: Welded galvannealed steel
  • Surface Finish: Baked enamel Gray
  • Box Number: 8R
  • Height: 37.99 in (965 mm)
  • Width: 14.76 in (375 mm)

Environment

  • Enclosure Rating: NEMA 3R outdoor
  • Ambient Air Temperature For Operation: 23 °F (-5 °C) || 104 °F (40 °C)
  • Product Certifications: UL Listed

Ordering And Shipping Details

  • Category: 10002 - QO PON 1PH LC,12-60 CKT, N3R
  • Discount Schedule: DE3A
  • GTIN: 00785901233657
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: US

Offer Sustainability

  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Overview

UPC 78590123365
Item Long Description QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as ground bars which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main lug and is rated at 225 A and 1 phase. This system provides 42 spaces in a NEMA 3R enclosure and is hub ready. Load center is plug on neutral ready. Ground bar is included but is to be field installed.
GTiN 00785901233657
Type MAIN BREAKER CONVERTIBLE LOAD CENTER
Country of Origin USA
Family Brand Name Square D by Schneider Electric
Circuit Breaker Type QO
Number of Phases 1 Phase
Short Circuit Current 65 kA
Number of Circuits 42
Enclosure Material Steel
Interrupt Rating 65 KA
Enclosure NEMA 3R
Sub Brand QO
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Voltage 120/240 VAC
Cable Size AWG 6...300 KCMIL ALUMINIUM/COPPER
Cover Type Surface cover
Number of Spaces 42
Finish Baked Enamel Gray
Width 14.76 in
Height 37.99 in
Certifications UL
Amperage 225 Amp
Operating Temperature 23 F (-5 C) || 104 F (40 C)
Current 225 A
Wire Size AWG 6...300 kcmil aluminium/copper
Enclosure Type Weatherproof enclosure
