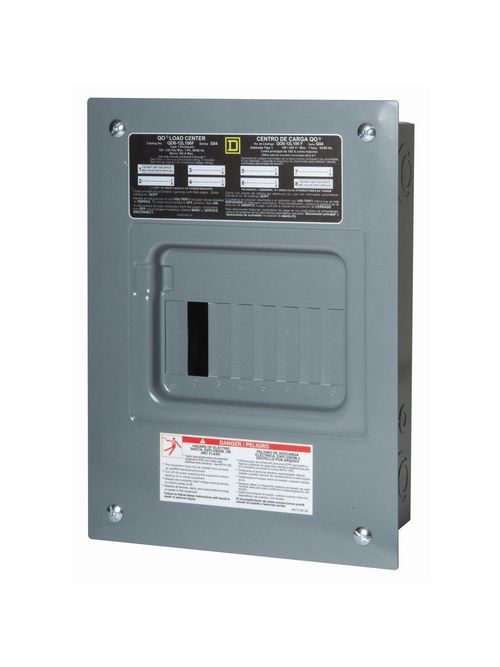

Square D QO6L100RB 120/240 VAC 100 Amp 1-Phase 3-Wire 6-Circuit Main Lug Load Center
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # QO6L100RB
Irby Part # 3872388

Specifications

Main

  • Marketing Trade Name: QO
  • Product Type: Load Center
  • Enclosure Type: Weatherproof enclosure
  • Cover Type: Surface cover

Complementary

  • Tightening Torque: Main lugs 50 lb.in, AWG 8, aluminium/copper || Main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
  • Load Center Type: Main lugs
  • Rated Current: 100 A
  • Number Of Spaces: 6
  • Max Short Circuit Current Rating: 10 kA
  • Maximum Number Of Single Pole Circuits: 6
  • Maximum Number Of Tandem Breakers: 0
  • Number Of Phases: 1 phase
  • Voltage Rating: 120/240 V AC
  • Ground Bar: Grounding bar (ordered separately)
  • Electrical Connection: Lugs
  • Wiring Configuration: 3-wire
  • Busbar Material: Tin plated aluminium busbar
  • Enclosure Material: Welded galvannealed steel
  • Surface Finish: Baked enamel Gray
  • Height: 12.48 in (317 mm)
  • Width: 8.78 in (223 mm)
  • Depth: 4.02 in (102 mm)

Environment

  • Enclosure Rating: NEMA 3R outdoor
  • Ambient Air Temperature For Operation: 23 °F (-5 °C) || 104 °F (40 °C)
  • Product Certifications: CULus

Ordering And Shipping Details

  • Category: 00156 - CANADIAN LOAD CTRS
  • Discount Schedule: DE3A
  • GTIN: 00785901965725
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: MX

Offer Sustainability

  • Green Premium Status: Green Premium product
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • REACh Free Of SVHC: Yes
  • EU RoHs Directive: Compliant
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Contractual Warranty

  • Warranty: 18 months

Categories

Overview

UPC 78590196572
Item Long Description Industry leading offer since 1955 with features engineered for faster installation, reliability and quality. Contractors installing QO know its the Worlds Finest!
GTiN 00785901965725
Warranty Length 18 mth
Voltage 120/240 Volt
Type Load Center
Material Tin Plated Aluminium Busbar
Country of Origin Mexico
Family Brand Name Square D by Schneider Electric
Circuit Breaker Type QO
Number of Phases 1 Phase
Line Rated Current 100 A
Short Circuit Current 10 kA
Number of Circuits 6
Enclosure Material Steel
Number of Spaces 6
Interrupt Rating 10 kA
Enclosure Welded galvannealed steel
Sub Brand QO
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cover Type Surface cover
Finish Baked Enamel Gray
Width 8.78 in
Depth 4.02 in
Height 12.48 in
Certifications CULus
Amperage 100 Amp
Operating Temperature 23 F (-5 C) || 104 F (40 C)
Current 100 A
Enclosure Type Weatherproof enclosure
