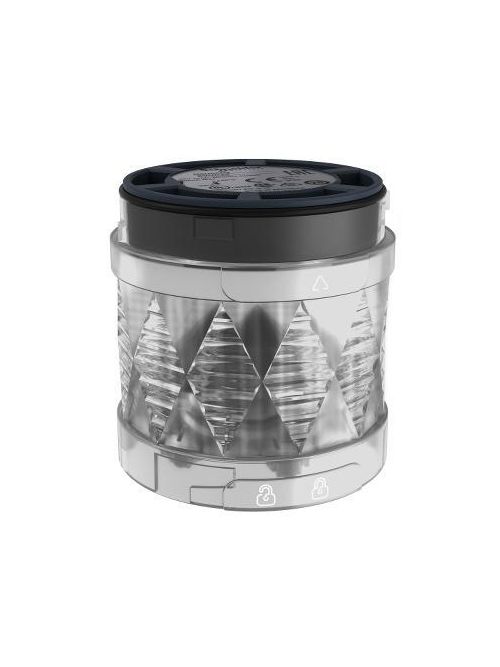

SQD XVUC29 XVU Multi-Color Unit
Product image thumbnail 0
Product image thumbnail 1
*Call For Price*
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # XVUC29
Irby Part # 3682284

Specifications

Main

  • Range Of Product: Harmony XVU
  • Product Or Component Type: Modular tower light
  • Beacon/Indicator Bk Unit Type: LED unit
  • Mounting Diameter: 2.36 in (60 mm)
  • Component Name: XVU
  • Light Source: LED, multi-colour
  • Light Source Colour: Green || Yellow || White || Blue || Amber || Red
  • Device Application: Automotive || Packaging machine || Machine tools

Complementary

  • Signalling Type: Steady || Rotating || Flashing || Blinking
  • Assembly Style: Up to 4 units with buzzer || Customer assembly, up to 5 units
  • Material: PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
  • [Us] Rated Supply Voltage: 24 V AC/DC
  • Power Dissipation In W: 1.5 W
  • Current Consumption: <= 70 mA
  • Flashing Frequency: 1 Hz blinking || 0.23 Hz slow flashing || 7.26 Hz fast flashing || 2.33 Hz slow rotating || 3.3 Hz fast rotating
  • Signalling Type: Steady/blinking/flashing/rotating
  • Length: 1.97 in (50 mm)
  • Product Weight: 0.14 lb(US) (0.064 kg)

Environment

  • Product Certifications: RoHS || CE || CSA || UL
  • Ambient Air Temp For Storage: -40…158 °F (-40…70 °C)
  • IP Degree Of Protection: IP65
  • Ambient Air Temp For Op: -13…122 °F (-25…50 °C)
  • Vibration Resistance: 2 gn

Ordering And Shipping Details

  • Category: 22618 - XVU TOWER LIGHTS
  • Discount Schedule: XV
  • GTIN: 00785901837381
  • Nbr. Of Units In Pkg.: 1
  • Returnability: Yes
  • Country Of Origin: ID

Offer Sustainability

  • Green Premium Status: Green Premium product
  • California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • EU RoHs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury Free: Yes

Overview

UPC 78590183738
GTiN 00785901837381
Length 1.97 in
Material PC (polycarbonate) V-0 UL 94,PC (polycarbonate) V-2 UL 94
Weight 0.14 lb
Country of Origin Indonesia
Family Brand Name Square D by Schneider Electric
Certifications CE,CSA,RoHS,UL
Current 70 mA
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Applications AUTOMOTIVE-PACKAGING MACHINE-MACHINE TOOLS,STEADY-ROTATING-FLASHING-BLINKING
Power Supply 1.5 W,24 V AC/DC,<= 70 MA
Environmental Conditions -25-50 AC,2 GN,IP65
Sub Brand XVU
