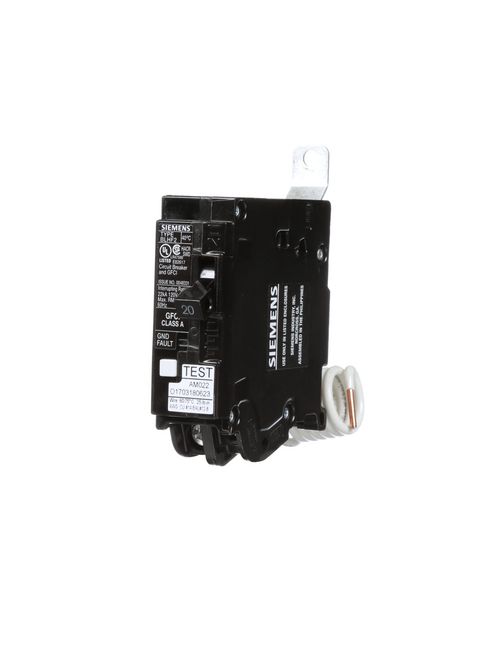

Siemens BF120AH 1-Pole Ground Fault Circuit Interrupter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$194.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens Energy & Automation
Mfg Catalog # BF120AH
Irby Part # 3665071

Specifications

  • Standard: UL / CSA
  • Tripping characteristic class: 5mA
  • Continuous current rated value: 20 A
  • Voltage between phase and Ground (GND) rated value: 120 V
  • Supply voltage frequency rated value 50/60 Hz: TRUE
  • Suitability for operation: PERSONEL PROTECTION
  • Number of poles: 1
  • Design of the product: BLHF
  • Design of the overload release: THERMAL-MAGNETIC
  • Product feature: 22kA INTERRUPT
  • Type of electrical connection: BOLT-ON
  • Product brand name: SIEMENS
  • Type of mounting panel: PANELBOARD

Overview

UPC 88762121528
GTiN 00887621215286
Voltage 120 Volt
Applications For Construction, SPAS, Hot Tubs, Kitchens, Bathrooms, etc
Family Brand Name Siemens
Number of Poles 1 Pole
Sub Brand Siemens
Mounting Type Bolt-On
Blade Dimensions 1 in W x 2.66 in D x 2.84 in H
Trip Type Thermal Magnetic, Long-Time and Instantaneous
Interrupt Rating 22 kA
Trip Range 5 mA
