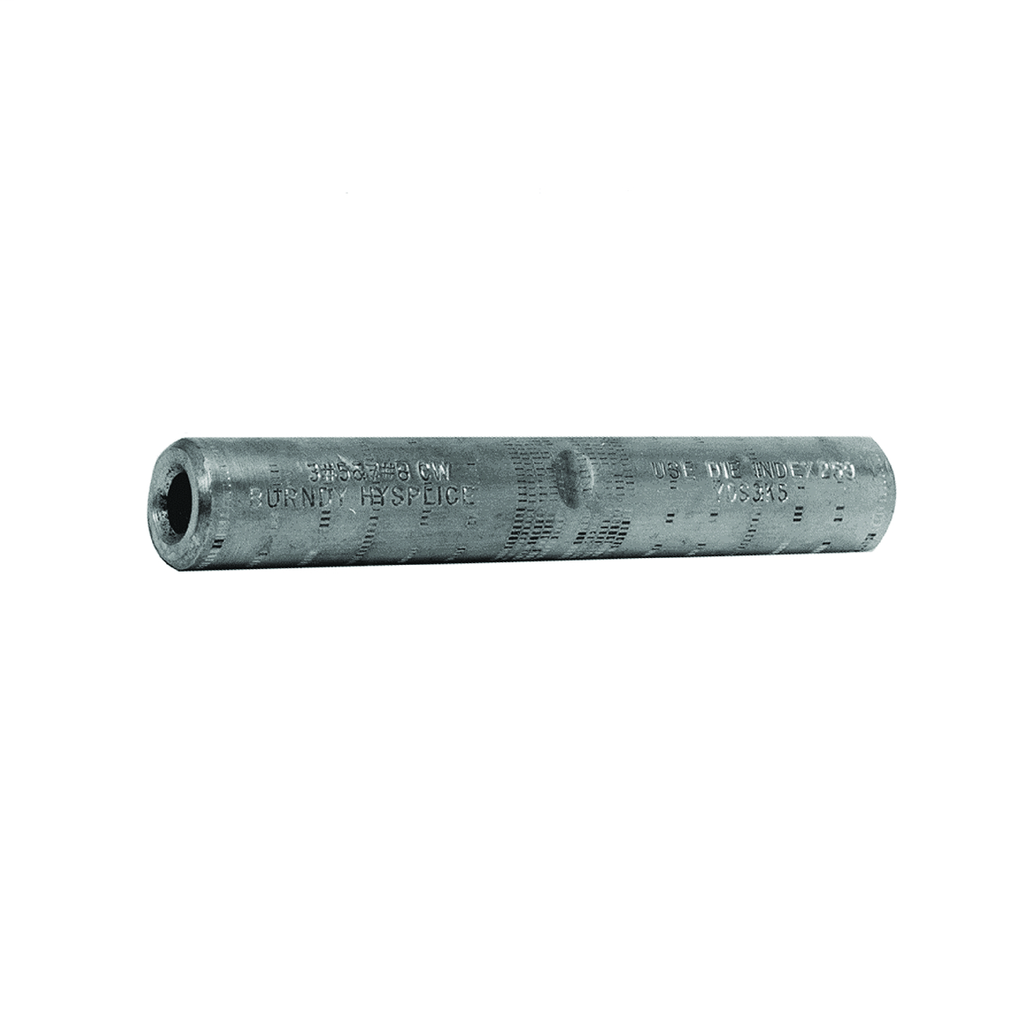

Burndy YDS27 3/0 AWG 6-3/4 Inch Copper Full Tension Compression Cable Splice
Product image thumbnail 0
Product image thumbnail 1
$87.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YDS27
Irby Part # 32495

Specifications

General

  • Application: For Stranded Copper Conductors
  • Connector Type: Splice
  • Die Index: 167
  • Material: Copper
  • Oxide Inhibitor Type: Penetrox E
  • Physical Attribute - Number of Crimps Required: 7
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Sub Brand: HYSPLICE
  • Trade Name: HYSPLICE™
  • Type: YDS
  • UPC: 781810014639

Dimensions

  • Dimension - B Length fraction: 3-2/7 in
  • Dimension - B Length inch: 3.29 in
  • Dimension - L Length Overall mm: 173 mm
  • Dimension - Length Overall inch: 6.83 in
  • Dimension - Outside Diameter inch: 0.79 in

Conductor Related

  • Conductor - Copper Str Size: 3/0 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181001463
GTiN 00781810014639
Size 6-3/4 IN Length
Material Copper
Applications For Stranded Copper Conductors
Family Brand Name BURNDY
Sub Brand HYSPLICE
Length 6.83 in
Color Black
Conductor Size 3/0 AWG
Plating Type Unplated
Plated? No
CSA No
