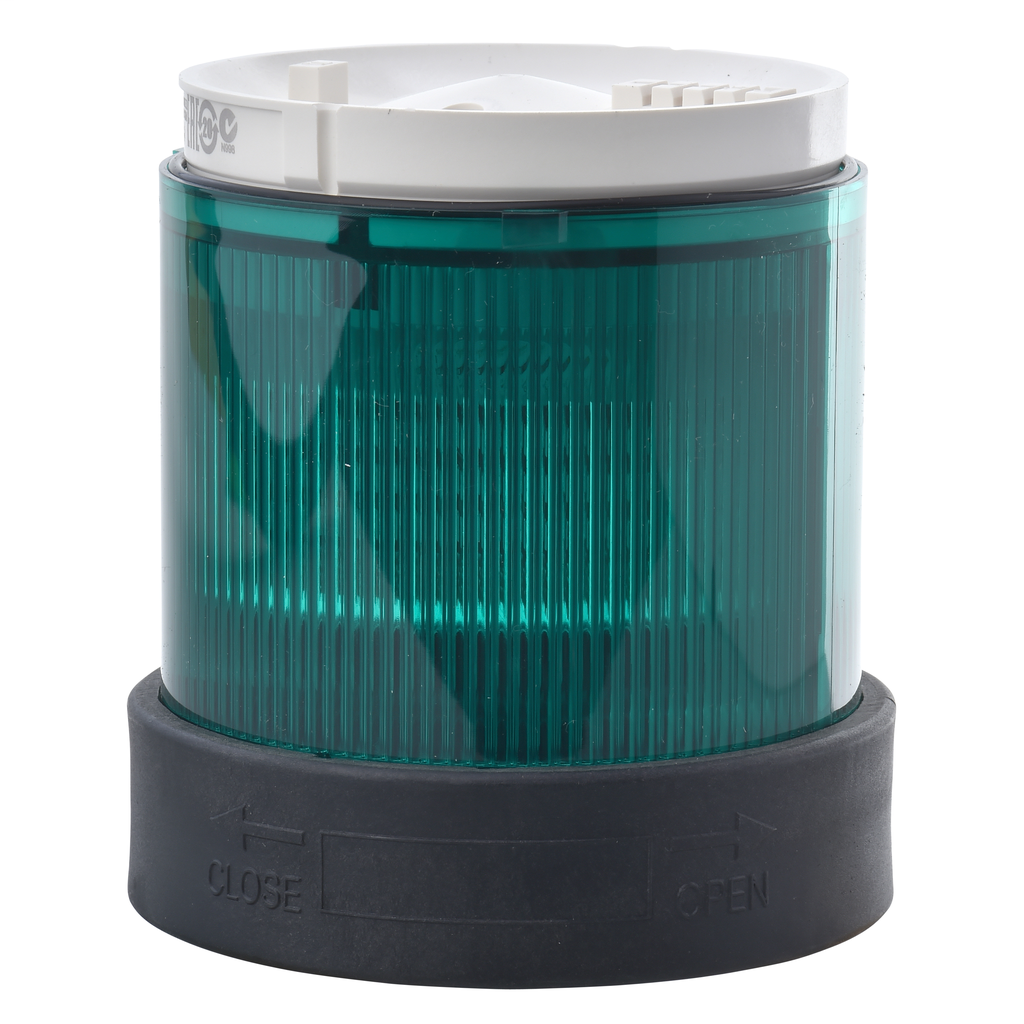

Square D XVBC4M3 70 mm 230 VAC 15 mA 10 W Green Polycarbonate Flash LED Beacon Lens Unit
$174.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Schneider / Square-D
Mfg Catalog # XVBC4M3
Irby Part # 142923

Specifications

Main

  • Range Of Product: Harmony XVB Universal
  • Product Or Component Type: Indicator bank
  • Beacon/Indicator Bk Unit Type: Illuminated unit
  • Signalling Type: Flashing
  • Mounting Diameter: 2.76 in (70 mm)
  • Component Name: XVBC
  • Material: Polycarbonate
  • Light Source: Bulb not included, green
  • Bulb Type: Incandescent BA 15d || Protected LED
  • Us Rated Supply Voltage: 48...230 V AC

Complementary

  • Assembly Style: Customer assembly, up to 5 units
  • Power Dissipation In W: 7 W
  • Connections - Terminals: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • Ui Rated Insulation Voltage: 250 V IEC 60947-1
  • Nominal Voltage Limit: 0.85...1.1 Un IEC 60947-5-1
  • Uimp Rated Imp Wstd Voltage: 4 kV IEC 60947-1
  • Flashing Frequency: 1 Hz
  • Cad Overall Width: 2.76 in (70 mm)
  • Cad Overall Height: 2.48 in (63 mm)
  • Cad Overall Depth: 2.76 in (70 mm)
  • Product Weight: 0.35 lb(US) (0.16 kg)

Environment

  • Pollution Degree: 2
  • Product Certifications: UL 508 || CCC || CSA C22-2 No 14 || GOST
  • Standards: EN/IEC 60947-5-1
  • Protective Treatment: TC
  • Ambient Air Temp For Storage: -40…158 °F (-40…70 °C)
  • Ambient Air Temp For Op: -13…122 °F (-25…50 °C) incandescent || -13…122 °F (-25…50 °C) LED
  • Electrical Shock Protect Class: Class I on support tube IEC 61140 || Class II on base unit IEC 61140
  • IP Degree Of Protection: IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
  • Nema Degree Of Protection: NEMA 4X UL 508 indoor)

Ordering And Shipping Details

  • Category: 22611 - XVB-STACKLIGHTS
  • Discount Schedule: XV
  • GTIN: 00785901368526
  • Nbr. Of Units In Pkg.: 1
  • Returnability: No
  • Country Of Origin: ID

Offer Sustainability

  • Green Premium Status: Green Premium product
  • EU RoHs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury Free: Yes
  • WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contractual Warranty

  • Warranty: 18 months

Overview

UPC 78590136852
GTiN 00785901368526
Size 70 MM,70 MM,70 MM
Material Polycarbonate
Lens Color BULB NOT INCLUDED, GREEN
Weight 0.35 lb
Country of Origin Indonesia
Standard EN/IEC 60947-5-1
Family Brand Name Square D by Schneider Electric
Lamp Type INCANDESCENT BA 15D-PROTECTED LED
Certifications GOST,UL 508,CCC,CSA C22-2 No 14
Enclosure IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529,NEMA 4X UL 508 INDOOR)
CA Prop65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty Length 18 mth
Voltage 48-230 Volt
Wattage 7 Watt
Sub Brand XVBC
